Panduit LCAX1/0-38H-X | Pan-Lug Copper Compression Connectors - Lugs
Description
Description

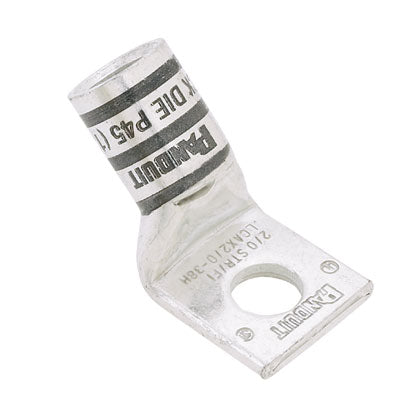

Connect large wires securely with our copper 1-hole tongue compression lug, its 45° angle offers increased flexibility and reliability in electrical applications.
Flex Lug, 1/0 AWG, 3/8" Stud Hole, 45 Angle Tongue
Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCAX, Copper Conductor, 1/0 AWG Class B, C, G, H, I, K, M and DLO Conductor, Die Code: P42, 35 kV, 3/8 in Stud, 45 deg Tongue, 0.85 in W x 0.13 in THK Tongue, 1.64 in Overall Length, Standard With Inspection Window Barrel, 0.45 in ID x 0.58 in OD x 0.72 in L Barrel, 3/4 in L Wire Strip, 90 deg C, 3/4 in Mounting Hole, Tin Plated Copper, Pink
Panduit - LCAX1/0-38H-X - Features
- Can be used with code conductor and flex conductor class: G, H, I, K, M and Diesel Locomotive
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- American Bureau of Shipping Approved
Specifications
Specifications
Panduit - LCAX1/0-38H-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCAX1/0-38H-X |
| Barrel | Standard |
| Bolt Hole | 1/4 Inch |
| Gauge | 1/0 Awg |
| Holes | 1 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Flex Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | 45° |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (mm) | 0 |
| Copper Code Conductor Size (AWG) | 1/0 |
| Class G Copper Flex Conductor Size (AWG) | 1/0 |
| Class H Copper Flex Conductor Size (AWG) | 1/0 |
| Class I Copper Flex Conductor Size (AWG) | 1/0 |
| Class K Copper Flex Conductor Size (AWG) | 1/0 |
| Class M Copper Flex Conductor Size (AWG) | 1/0 |
| DLO Copper Flex Conductor Size (AWG) | 1/0 |
| Barrel Length (In.) | 0.72 |
| Barrel Length (mm) | 18.3 |
| UPC | 07498343528 |
Panduit - LCAX1/0-38H-X - Videos
| Panduit LCAX1/0-38H-X Video 1 | Click to View |
|---|---|
| Panduit LCAX1/0-38H-X Video 2 | Click to View |
