Brand: Panduit
|
SKU:
DRC-027830

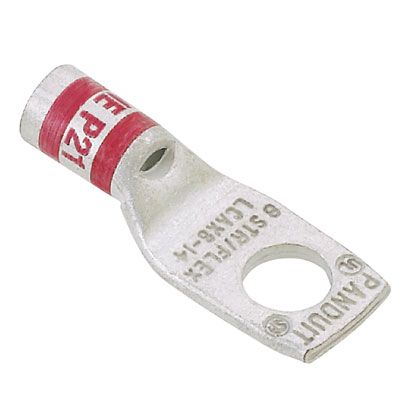

Panduit LCAX1/0-58-X | Pan-Lug LCAX1/0-58-X Copper Compression Connectors - Lugs
Regular price
$71.53
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCAX1/0-58-X | Pan-Lug LCAX1/0-58-X Copper Compression Conn...
Regular price
$71.53
Unit price
Description
Description
Panduit LCAX1/0-58-X | Pan-Lug LCAX1/0-58-X Copper Compression Connectors - Lugs
One-hole, flex lug, 1/0 AWG wire, 5/8 stud hole.
Specifications
Specifications
Panduit - LCAX1/0-58-X - Product Categories
- Wire Termination
- Mechanical & Compression Lugs & Splices
Panduit - LCAX1/0-58-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCAX1/0-58-X |
| Item Description | Pan-Lug LCAX1/0-58-X Copper Compression Connectors - Lugs |
| Product Type | Compression Lug |
| Base Material | Copper |
| Copper Code Conductor Size (AWG) | 1/0 |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 5/8 |
| Stud Hole Size (mm) | 15.9 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.72 |
| Barrel Length (mm) | 18.3 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.96 |
| Tongue Width (mm) | 24.4 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.11 |
| Tongue Thickness (mm) | 2.8 |
| Overall Length (In.) | 2.38 |
| Overall Length (mm) | 60.5 |
| Finish/Coating | Tin-Plated |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Color Code | Pink |
| Panduit Die Index Number | P42 |
| Burndy Die Index Number | 12 |
| Wire Strip Length (mm) | 19.1 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry. |
Brand Name - LCAX1/0-58-X - Package Information
| UPC | 07498312658 |
|---|---|
| Standard Package Quantity | 10 |
| Standard Package Volume (cf) | 0.0305 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Brand Name - LCAX1/0-58-X - Videos
| Video URL 1 | Click to View |
|---|---|
| Video URL 2 | Click to View |
