Panduit LCAX1-38-X | Pan-Lug Comp. Lug, Tin Plt Copper, Strt, One 0...
Description
Description

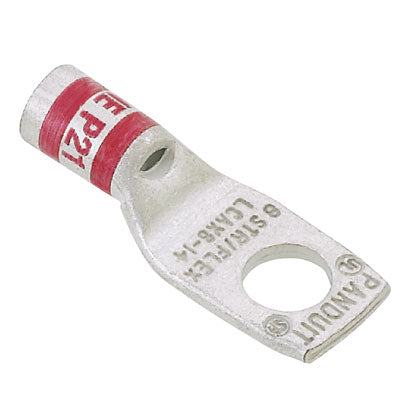

Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.
One-hole, flex lug, #1 AWG wire, 3/8 stud hole.
Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCAX, Copper Conductor, 1 AWG Class B, C, G, H, I, K, M and DLO Conductor, Die Code: P37, 35 kV, 3/8 in Stud, Straight Tongue, 0.76 in W x 0.12 in THK Tongue, 1.8 in Overall Length, Standard With Inspection Window Barrel, 0.39 in ID x 0.52 in OD x 0.66 in L Barrel, 3/4 in L Wire Strip, 90 deg C, 3/4 in Mounting Hole, Tin Plated Copper, Green
Panduit - LCAX1-38-X - Features
- Can be used with code conductor and flex conductor class: G, H, I, K, M and Diesel Locomotive
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- American Bureau of Shipping Approved
Specifications
Specifications
Panduit - LCAX1-38-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCAX1-38-X |
| Barrel | Standard |
| Bolt Hole | 3/8 Inch |
| Gauge | 1 Awg |
| Holes | 1 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Flex Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (mm) | 0 |
| Copper Code Conductor Size (AWG) | 1 |
| Class G Copper Flex Conductor Size (AWG) | 1 |
| Class H Copper Flex Conductor Size (AWG) | 1 |
| Class I Copper Flex Conductor Size (AWG) | 1 |
| Class K Copper Flex Conductor Size (AWG) | 1 |
| Class M Copper Flex Conductor Size (AWG) | 1 |
| DLO Copper Flex Conductor Size (AWG) | 1 |
| Barrel Length (In.) | 0.66 |
| Barrel Length (mm) | 16.8 |
| UPC | 07498343515 |
Panduit - LCAX1-38-X - Videos
| Panduit LCAX1-38-X Video 1 | Click to View |
|---|---|
| Panduit LCAX1-38-X Video 2 | Click to View |
