Panduit LCAX1-38F-X | CuLug, #1AWG, 3/8Stud, 90°PKG10
Description
Description

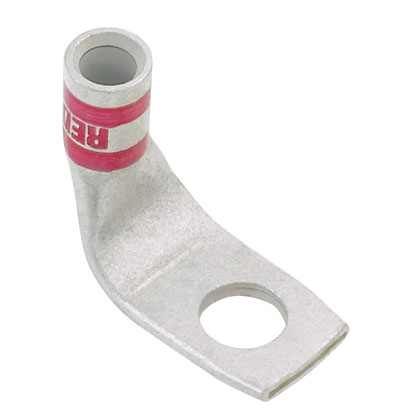

Our 1-hole tongue compression lug, with its 90° angle, simplifies secure connections for large electrical wires in installations and maintenance projects.
Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCAX, Copper Conductor, 1 AWG Class B, C, G, H, I, K, M and DLO Conductor, Die Code: P37, 35 kV, 3/8 in Stud, 90 deg Long Tongue, 0.83 in L x 0.76 in W x 0.12 in THK Tongue, 1.58 in Overall Length, Standard With Inspection Window Barrel, 0.39 in ID x 0.52 in OD x 0.66 in L Barrel, 3/4 in L Wire Strip, 90 deg C, 3/4 in Mounting Hole, Tin Plated Copper, Green
Panduit - LCAX1-38F-X - Features
- Color-coded bands for proper die selection and crimp placement
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Tin-plated to inhibit corrosion
- Inspection window to assure complete conductor insertion
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
Specifications
Specifications
Panduit - LCAX1-38F-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCAX1-38F-X |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | 90° |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (mm) | 0 |
| Copper Code Conductor Size (AWG) | 1 |
| Class G Copper Flex Conductor Size (AWG) | 1 |
| Class H Copper Flex Conductor Size (AWG) | 1 |
| Class I Copper Flex Conductor Size (AWG) | 1 |
| Class K Copper Flex Conductor Size (AWG) | 1 |
| Class M Copper Flex Conductor Size (AWG) | 1 |
| DLO Copper Flex Conductor Size (AWG) | 1 |
| Barrel Length (In.) | 0.66 |
| Barrel Length (mm) | 16.8 |
| UPC | 07498343517 |
