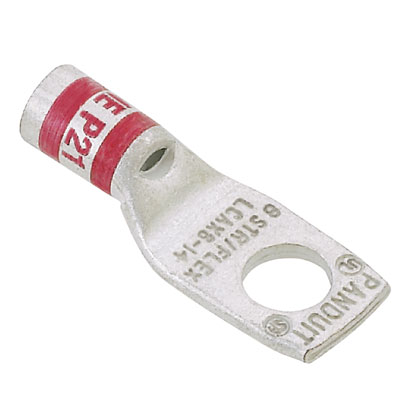

Panduit LCAX2/0-58-X | Pan-Lug Copper Compression Connectors - Lugs
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCAX2/0-58-X | Pan-Lug Copper Compression Connectors - Lugs
Description
Description
Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.
One-hole, flex lug, 2/0 AWG wire, 5/8 stud hole, standard package.
Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCAX, Copper Conductor, 2/0 AWG Class B, C, G, H, I, K, M and DLO Conductor, Die Code: P45, 35 kV, 5/8 in Stud, Straight Tongue, 0.96 in W x 0.13 in THK Tongue, 2.52 in Overall Length, Standard With Inspection Window Barrel, 0.51 in ID x 0.64 in OD x 0.83 in L Barrel, 7/8 in L Wire Strip, 90 deg C, 7/8 in Mounting Hole, Tin Plated Copper, Black
Panduit - LCAX2/0-58-X - Features
- Color-coded bands for proper die selection and crimp placement
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Tin-plated to inhibit corrosion
- Inspection window to assure complete conductor insertion
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
Specifications
Specifications
Panduit - LCAX2/0-58-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCAX2/0-58-X |
| Barrel | Standard |
| Bolt Hole | 5/16 Inch |
| Gauge | 2/0 Awg |
| Holes | 1 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Flex Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 5/8 |
| Stud Hole Size (mm) | 15.9 |
| Stud Hole Spacing (mm) | 0 |
| Copper Code Conductor Size (AWG) | 2/0 |
| Class G Copper Flex Conductor Size (AWG) | 2/0 |
| Class H Copper Flex Conductor Size (AWG) | 2/0 |
| Class I Copper Flex Conductor Size (AWG) | 2/0 |
| Class K Copper Flex Conductor Size (AWG) | 2/0 |
| Class M Copper Flex Conductor Size (AWG) | 2/0 |
| DLO Copper Flex Conductor Size (AWG) | 2/0 |
| Barrel Length (In.) | 0.83 |
| Barrel Length (mm) | 21.1 |
| UPC | 07498344754 |
Panduit - LCAX2/0-58-X - Videos
| Panduit LCAX2/0-58-X Video 1 | Click to View |
|---|---|
| Panduit LCAX2/0-58-X Video 2 | Click to View |
