Our 1-hole tongue compression lug, with its 90° angle, simplifies secure connections for large electrical wires in installations and maintenance projects.

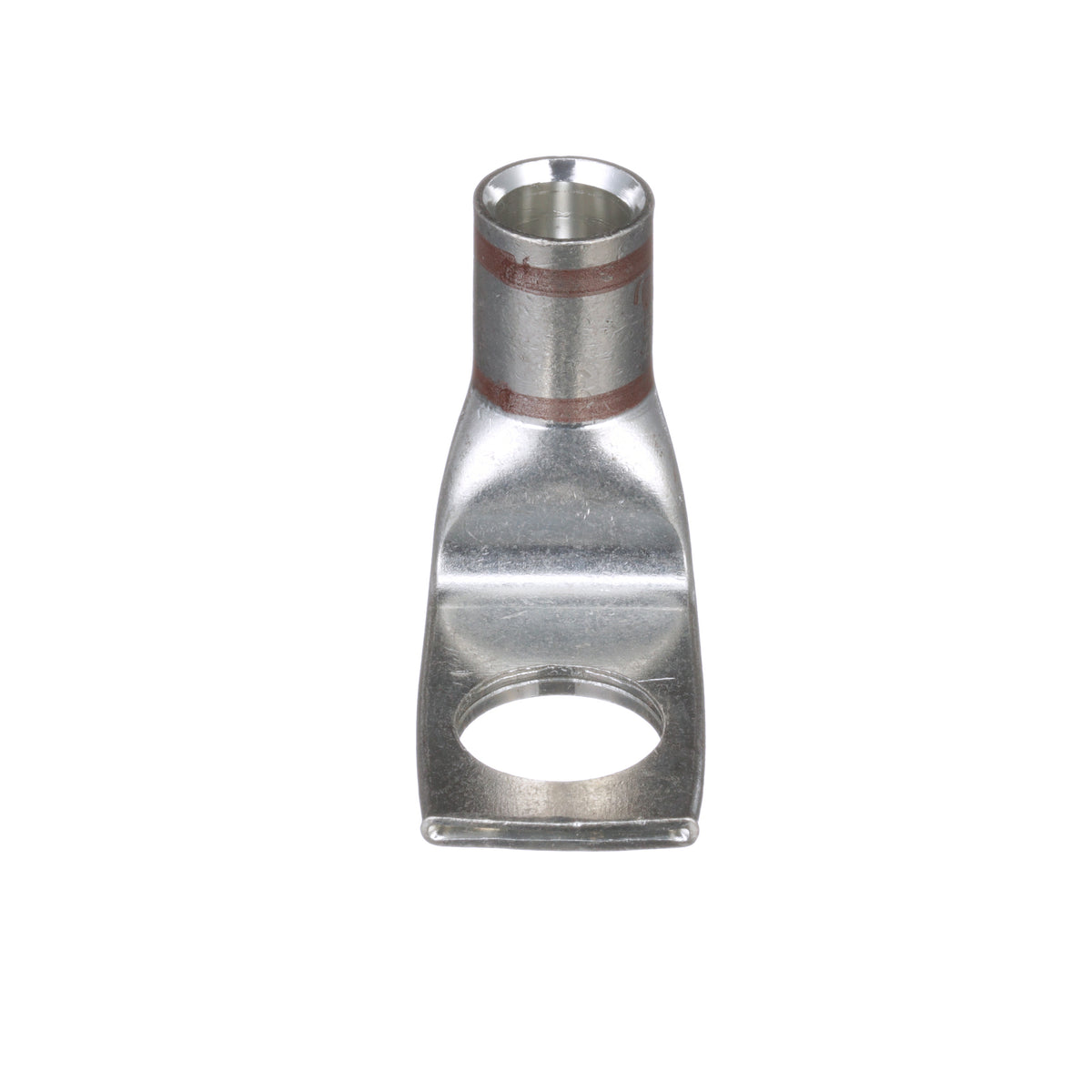

Flex Lug, #2 AWG, 1/2" Stud Hole, 90 Angle Tongue
Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCAX, Copper Conductor, 2 AWG Class B, C, G, H, I, K, M and DLO Conductor, Die Code: P33, 35 kV, 1/2 in Stud, 90 deg Long Tongue, 1-5/64 in L x 3/4 in W x 3/32 in THK Tongue, 1-3/4 in Overall Length, Standard With Inspection Window Barrel, 0.36 in ID x 0.47 in OD x 0.59 in L Barrel, 11/16 in L Wire Strip, 90 deg C, 11/16 in Mounting Hole, Tin Plated Copper, Brown
Panduit - LCAX2-12F-E - Features
- Can be used with code conductor and flex conductor class: G, H, I, K, M and Diesel Locomotive
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- American Bureau of Shipping Approved
Specifications
Specifications
Panduit - LCAX2-12F-E - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCAX2-12F-E |
| Barrel | Standard |
| Bolt Hole | 1/2 Inch |
| Gauge | 2 Awg |
| Holes | 1 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Flex Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | 90° |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (mm) | 0 |
| Copper Code Conductor Size (AWG) | 2 |
| Class G Copper Flex Conductor Size (AWG) | 2 |
| Class H Copper Flex Conductor Size (AWG) | 2 |
| Class I Copper Flex Conductor Size (AWG) | 2 |
| Class K Copper Flex Conductor Size (AWG) | 2 |
| Class M Copper Flex Conductor Size (AWG) | 2 |
| DLO Copper Flex Conductor Size (AWG) | 2 |
| Barrel Length (In.) | 0.59 |
| Barrel Length (mm) | 15 |
| UPC | 07498344262 |
