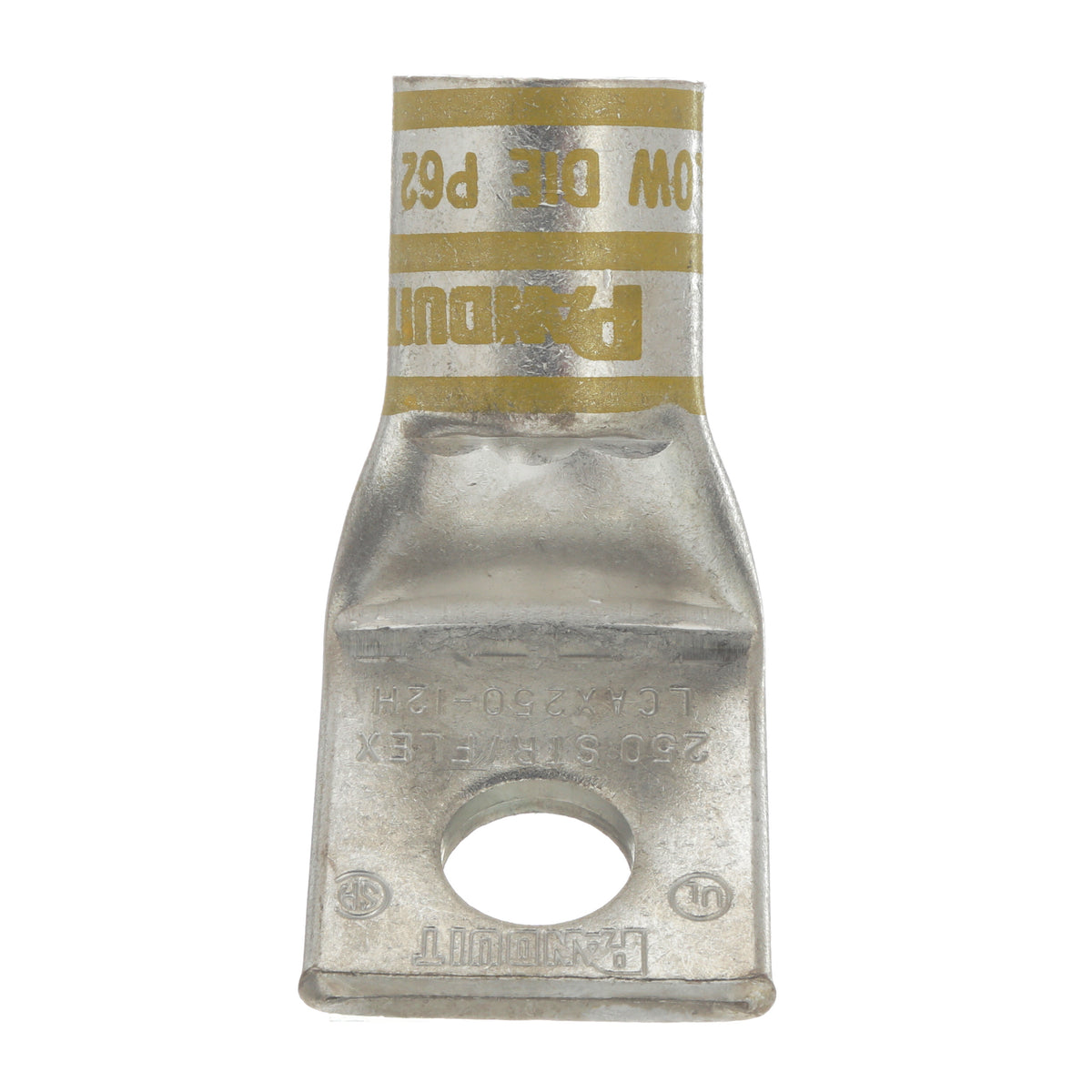

Panduit LCAX250-12H-X | Pan-Lug Copper Compression Connectors - Lugs
Description
Description
Connect large wires securely with our copper 1-hole tongue compression lug, its 45° angle offers increased flexibility and reliability in electrical applications.
Flex Lug, 250 kcmil, 1/2" Stud Hole, 45 Angle Tongue
Panduit Pan-Lug Lug Compression Connector, 1-Hole, Series: LCAX, Flexible Conductor, 250 kcmil, 262.6 kcmil Conductor, Die Code: P62, 35 kV, 1/2 in Stud, 45 deg Tongue, 1.28 in W x 0.17 in THK Tongue, 4.06 in Overall Length, Standard Barrel, 1.03 in L Barrel, 90 deg C, 1-1/16 in Mounting Hole, Tin Plated Copper, Yellow
Panduit - LCAX250-12H-X - Features
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Can be used with code conductor and flex conductor class: G, H, I, K, M and Diesel Locomotive
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- American Bureau of Shipping Approved
Specifications
Specifications
Panduit - LCAX250-12H-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCAX250-12H-X |
| Barrel | Standard |
| Bolt Hole | 1/2 Inch |
| Gauge | 250Kcmil (Aka Mcm) |
| Holes | 1 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Flex Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | 45° |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (mm) | 0 |
| Class G Copper Flex Conductor Size (kcmil) | 250 |
| Class H Copper Flex Conductor Size (kcmil) | 250 |
| Class I Copper Flex Conductor Size (kcmil) | 250 |
| Class K Copper Flex Conductor Size (kcmil) | 250 |
| Class M Copper Flex Conductor Size (kcmil) | 250 |
| DLO Copper Flex Conductor Size (kcmil) | 262.6 |
| Barrel Length (In.) | 1.03 |
| Barrel Length (mm) | 26.2 |
| Tongue Width (In.) | 1.28 |
| UPC | 07498343574 |
