Panduit LCAX3/0-14F-X | STDFlexLug, 3/0AWG, .25in, 90°, WDW, PK10
Description
Description

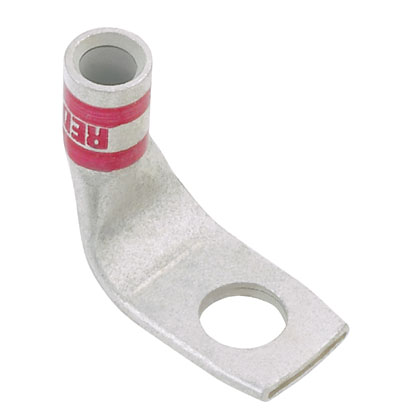

Our 1-hole tongue compression lug, with its 90° angle, simplifies secure connections for large electrical wires in installations and maintenance projects.
Panduit Pan-Lug Lug Compression Connector, 1-Hole, Series: LCAX, Flexible Conductor, 3/0 AWG Conductor, Die Code: P50, 35 kV, 1/4 in Stud, 90 deg Tongue, 1.06 in W x 0.14 in THK Tongue, 2.86 in Overall Length, Standard Barrel, 0.91 in L Barrel, 90 deg C, 1 in Mounting Hole, Tin Plated Copper, Orange
Panduit - LCAX3/0-14F-X - Features
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
Specifications
Specifications
Panduit - LCAX3/0-14F-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCAX3/0-14F-X |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | 90° |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (mm) | 0 |
| Copper Code Conductor Size (AWG) | 3/0 |
| Class G Copper Flex Conductor Size (AWG) | 3/0 |
| Class H Copper Flex Conductor Size (AWG) | 3/0 |
| Class I Copper Flex Conductor Size (AWG) | 3/0 |
| Class K Copper Flex Conductor Size (AWG) | 3/0 |
| Class M Copper Flex Conductor Size (AWG) | 3/0 |
| DLO Copper Flex Conductor Size (AWG) | 3/0 |
| Barrel Length (In.) | 0.91 |
| Barrel Length (mm) | 23.1 |
| UPC | 07498343547 |
