Panduit LCAX350-38-6 | Pan-Lug Comp. Lug, 350, Tin Plt Copper, Strt...
Description
Description
Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.

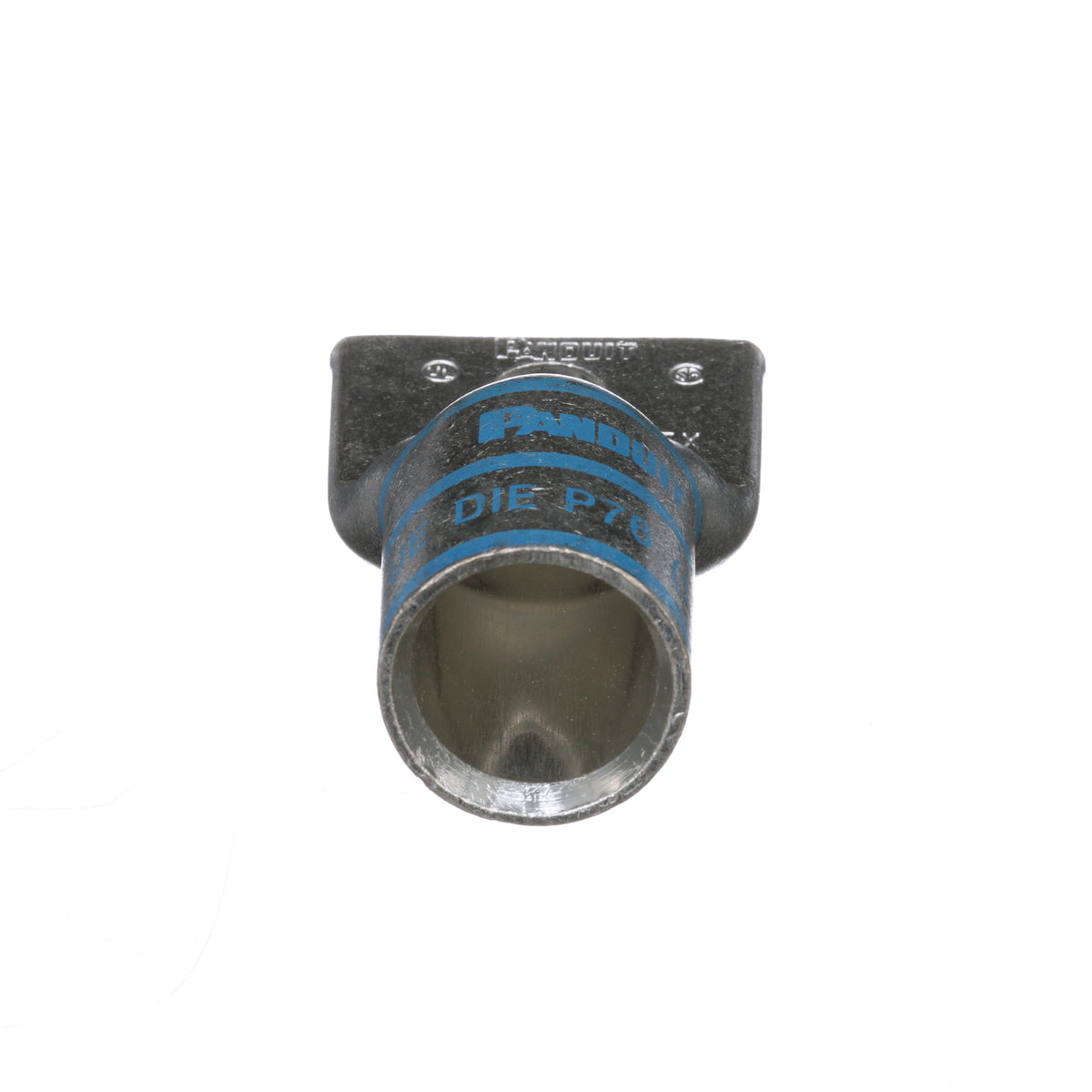

The LCAX350-38-6 Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full cond uctor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90C.
Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCAX, Copper Conductor, 350 kcmil Class G, H, I, K, M, 373.7 kcmil DLO Conductor, Die Code: P76, 35 kV, 3/8 in Stud, Straight Tongue, 1.54 in W x 0.22 in THK Tongue, 2.93 in Overall Length, Standard With Inspection Window Barrel, 0.84 in ID x 1.06 in OD x 1.29 in L Barrel, 1.38 in L Wire Strip, 90 deg C, 1-3/8 in Mounting Hole, Tin Plated Copper, Blue
Panduit - LCAX350-38-6 - Features
- Color-coded bands for proper die selection and crimp placement
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Tin-plated to inhibit corrosion
- Inspection window to assure complete conductor insertion
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
Specifications
Specifications
Panduit - LCAX350-38-6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCAX350-38-6 |
| Barrel | Standard |
| Bolt Hole | 3/8 Inch |
| Gauge | 350Kcmil (Aka Mcm) |
| Holes | 1 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Flex Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (mm) | 0 |
| Class G Copper Flex Conductor Size (kcmil) | 350 |
| Class H Copper Flex Conductor Size (kcmil) | 350 |
| Class I Copper Flex Conductor Size (kcmil) | 350 |
| Class K Copper Flex Conductor Size (kcmil) | 350 |
| Class M Copper Flex Conductor Size (kcmil) | 350 |
| DLO Copper Flex Conductor Size (kcmil) | 373.7 |
| Barrel Length (In.) | 1.29 |
| Barrel Length (mm) | 32.8 |
| Tongue Width (In.) | 1.54 |
| UPC | 07498343588 |
Panduit - LCAX350-38-6 - Videos
| Panduit LCAX350-38-6 Video 1 | Click to View |
|---|---|
| Panduit LCAX350-38-6 Video 2 | Click to View |
