Brand: Panduit
|
SKU:
DRC-008601

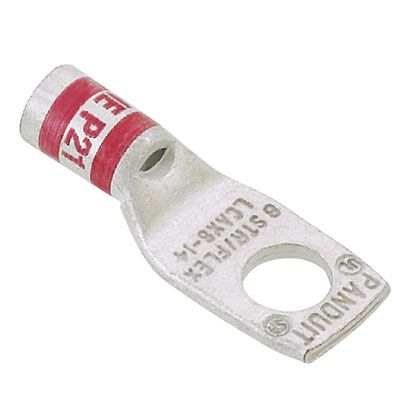

Panduit LCAX350-58-6 | Pan-Lug LCAX350-58-6 Copper Compression Connectors - Lugs
Regular price
$20.23
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCAX350-58-6 | Pan-Lug LCAX350-58-6 Copper Compression Conn...
Regular price
$20.23
Unit price
Description
Description
Panduit LCAX350-58-6 | Pan-Lug LCAX350-58-6 Copper Compression Connectors - Lugs
One-hole, flex lug, 350 kcmil cable, 5/8 stud hole.
Specifications
Specifications
Panduit - LCAX350-58-6 - Product Categories
- Wire Termination
- Mechanical & Compression Lugs & Splices
Panduit - LCAX350-58-6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCAX350-58-6 |
| Item Description | Pan-Lug LCAX350-58-6 Copper Compression Connectors - Lugs |
| Product Type | Compression Lug |
| Base Material | Copper |
| Class G Copper Flex Conductor Size (kcmil) | 350 |
| Class H Copper Flex Conductor Size (kcmil) | 350 |
| Class I Copper Flex Conductor Size (kcmil) | 350 |
| Class K Copper Flex Conductor Size (kcmil) | 350 |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 5/8 |
| Stud Hole Size (mm) | 15.9 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.29 |
| Barrel Length (mm) | 32.8 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.54 |
| Tongue Width (mm) | 39.1 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.22 |
| Tongue Thickness (mm) | 5.6 |
| Overall Length (In.) | 3.3 |
| Overall Length (mm) | 83.8 |
| Finish/Coating | Tin-Plated |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Color Code | Blue |
| Panduit Die Index Number | P76 |
| Burndy Die Index Number | 19 |
| Wire Strip Length (mm) | 34.9 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry. |
Brand Name - LCAX350-58-6 - Package Information
| UPC | 07498343594 |
|---|---|
| Standard Package Quantity | 6 |
| Standard Package Volume (cf) | 0.0388 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Brand Name - LCAX350-58-6 - Videos
| Video URL 1 | Click to View |
|---|---|
| Video URL 2 | Click to View |
