Brand: Panduit
|
SKU:
LCAX4/0-12-X
Panduit LCAX4/0-12-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498343564
Regular price
$12.28
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCAX4/0-12-X | Tin-Plated Copper Compression Connectors - L...
Regular price
$12.28
Unit price
Description
Description

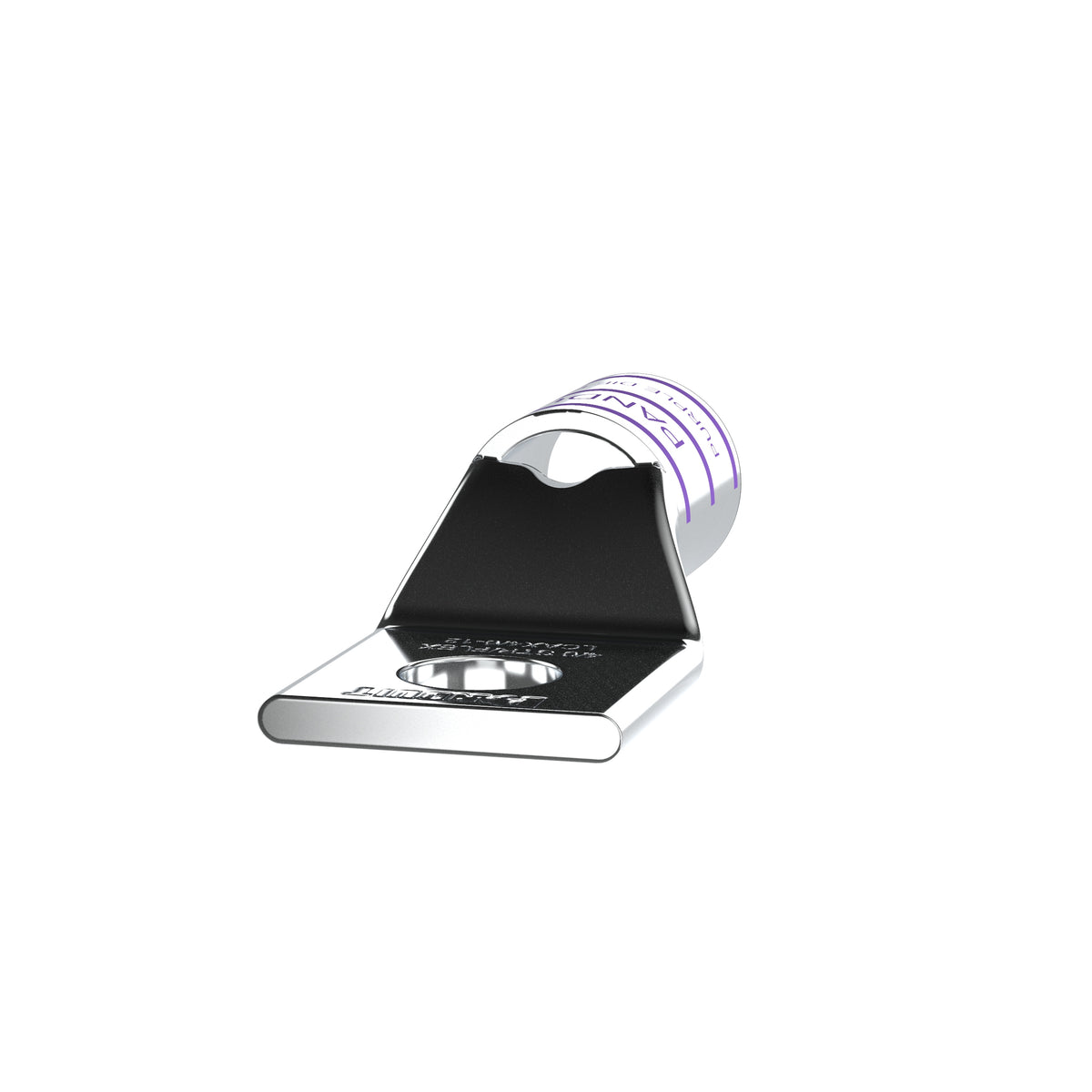

Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCAX, Copper Conductor, 4/0 AWG Class B, C, G, H, I, K, M and DLO Conductor, Die Code: P54, 35 kV, 1/2 in Stud, Straight Tongue, 1.19 in W x 0.16 in THK Tongue, 2.64 in Overall Length, Standard With Inspection Window Barrel, 0.65 in ID x 0.81 in OD x 1.03 in L Barrel, 1-1/16 in L Wire Strip, 90 deg C, 1-1/16 in Mounting Hole, Tin Plated Copper, Purple
Features + Benefits
- Color-coded bands for proper die selection and crimp placement
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Tin-plated to inhibit corrosion
- Inspection window to assure complete conductor insertion
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
Panduit LCAX4/0-12-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498343564 Key Specs
| Inside Diameter (In.) | 0.65 |
| Inside Diameter (mm) | 16.51 |
| Outer Diameter (In.) | 0.81 |
| Outer Diameter (mm) | 20.57 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Lug Type | 1 Stud Hole Lug |
| Base Material | Copper |
| Class G Copper Flex Conductor Size (AWG) | 4/0 |
| Class H Copper Flex Conductor Size (AWG) | 4/0 |
| Class I Copper Flex Conductor Size (AWG) | 4/0 |
| Class K Copper Flex Conductor Size (AWG) | 4/0 |
| Class M Copper Flex Conductor Size (AWG) | 4/0 |
| Copper Code Conductor Size (AWG) | 4/0 |
| DLO Copper Flex Conductor Size (AWG) | 4/0 |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Barrel Type | Standard Barrel with Inspection Window |
| Barrel Length (In.) | 1.03 |
| Barrel Length (mm) | 26.2 |
Panduit LCAX4/0-12-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498343564 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCAX8-10-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCAX4_0-12-X | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCAX4/0-12-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498343564 Environmental Information
| Panduit's RoHS Statement | Download and View |
