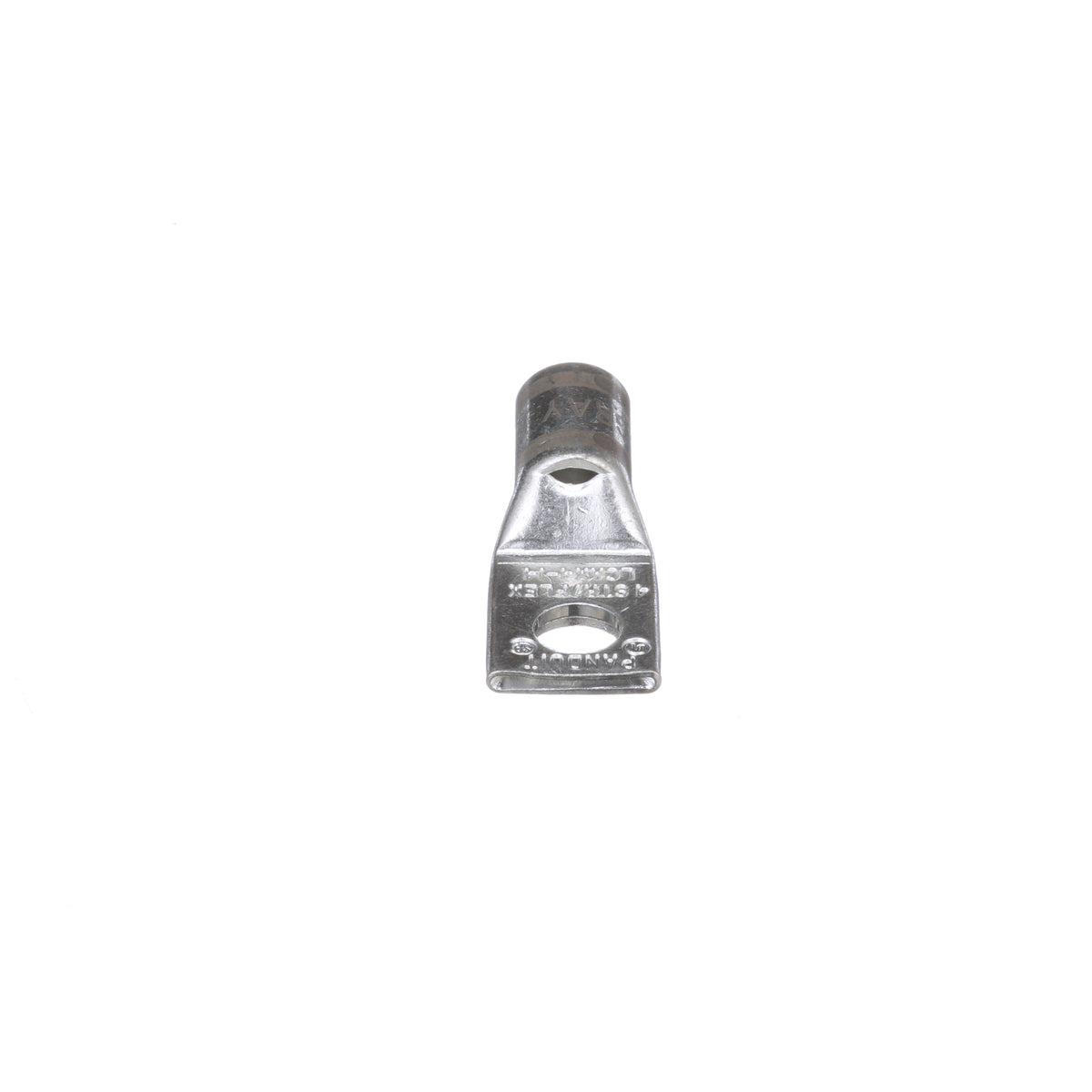

Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCAX, Copper Conductor, 4 AWG Class B, C, G, H, I, K, M and 5, 4, 3 AWG DLO Conductor, Die Code: P29, 35 kV, 1/4 in Stud, Straight Tongue, 0.55 in W x 0.09 in THK Tongue, 1.35 in Overall Length, Standard With Inspection Window Barrel, 0.28 in ID x 0.38 in OD x 0.53 in L Barrel, 5/8 in L Wire Strip, 90 deg C, 5/8 in Mounting Hole, Tin Plated Copper, Gray
Features + Benefits
- Color-coded bands for proper die selection and crimp placement
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Tin-plated to inhibit corrosion
- Inspection window to assure complete conductor insertion
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
Panduit LCAX4-14-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498343401 Key Specs
| Inside Diameter (In.) | 0.28 |
| Inside Diameter (mm) | 7.11 |
| Outer Diameter (In.) | 0.38 |
| Outer Diameter (mm) | 9.65 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Lug Type | 1 Stud Hole Lug |
| Base Material | Copper |
| Class G Copper Flex Conductor Size (AWG) | 4 |
| Class H Copper Flex Conductor Size (AWG) | 4 |
| Class I Copper Flex Conductor Size (AWG) | 4 |
| Class K Copper Flex Conductor Size (AWG) | 4 |
| Class M Copper Flex Conductor Size (AWG) | 4 |
| Copper Code Conductor Size (AWG) | 4 |
| DLO Copper Flex Conductor Size (AWG) | 4 |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Barrel Type | Standard Barrel with Inspection Window |
| Barrel Length (In.) | 0.53 |
| Barrel Length (mm) | 13.5 |
