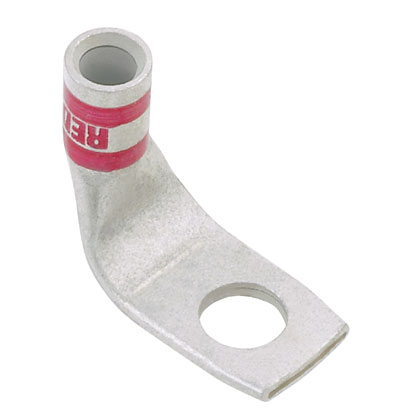

Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCAX, Copper Conductor, 4 AWG Class B, C, G, H, I, K, M and 5, 4, 3 AWG DLO Conductor, Die Code: P29, 35 kV, 1/4 in Stud, 90 deg Long Tongue, 0.62 in L x 0.55 in W x 0.09 in THK Tongue, 1.12 in Overall Length, Standard With Inspection Window Barrel, 0.28 in ID x 0.38 in OD x 0.53 in L Barrel, 5/8 in L Wire Strip, 90 deg C, 5/8 in Mounting Hole, Tin Plated Copper, Gray
Features + Benefits
- Color-coded bands for proper die selection and crimp placement
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Tin-plated to inhibit corrosion
- Inspection window to assure complete conductor insertion
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
Panduit LCAX4-14F-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498343407 Key Specs
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.53 |
| Barrel Length (mm) | 13.5 |
| Tongue Type | Standard Tongue Width |
| Tongue Width (In.) | 0.55 |
| Tongue Width (mm) | 14 |
| Tongue Angle | 90° |
| Tongue Thickness (In.) | 0.09 |
| Tongue Thickness (mm) | 2.3 |
| Overall Length (In.) | 1.12 |
| Overall Length (mm) | 28.5 |
| Color Code | Gray |
| Panduit Die Index Number | P29 |
| Burndy Die Index Number | 8 |
| Wire Strip Length (In.) | 42,952 |
| Wire Strip Length (mm) | 15.8 |
Panduit LCAX4-14F-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498343407 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCAX8-10F-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCAX4-14F-L | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCAX4-14F-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498343407 Environmental Information
| Panduit's RoHS Statement | Download and View |
