Brand: Panduit
|
SKU:
DRC-008701

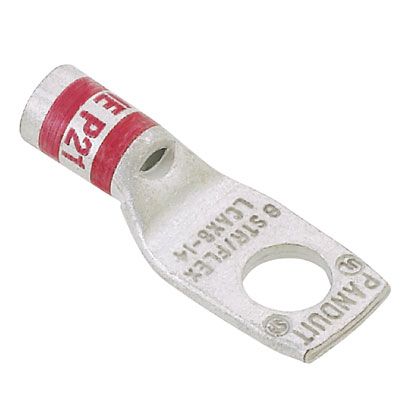

Panduit LCAX4-38-L | Pan-Lug LCAX4-38-L Copper Compression Connectors - Lugs
Regular price
$124.85
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCAX4-38-L | Pan-Lug LCAX4-38-L Copper Compression Connecto...
Regular price
$124.85
Unit price
Description
Description
Panduit LCAX4-38-L | Pan-Lug LCAX4-38-L Copper Compression Connectors - Lugs
One-hole, flex lug, #4 AWG wire, 3/8 stud hole.
Specifications
Specifications
Panduit - LCAX4-38-L - Product Categories
- Wire Termination
- Mechanical & Compression Lugs & Splices
Panduit - LCAX4-38-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCAX4-38-L |
| Item Description | Pan-Lug LCAX4-38-L Copper Compression Connectors - Lugs |
| Product Type | Compression Lug |
| Base Material | Copper |
| Class G Copper Flex Conductor Size (AWG) | 4 |
| Class H Copper Flex Conductor Size (AWG) | 4 |
| Class I Copper Flex Conductor Size (AWG) | 4 |
| Class K Copper Flex Conductor Size (AWG) | 4 |
| Class M Copper Flex Conductor Size (AWG) | 4 |
| Copper Code Conductor Size (AWG) | 4 |
| DLO Copper Flex Conductor Size (AWG) | 4 |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.53 |
| Barrel Length (mm) | 13.5 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.62 |
| Tongue Width (mm) | 15.7 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.07 |
| Tongue Thickness (mm) | 1.8 |
| Overall Length (In.) | 1.57 |
| Overall Length (mm) | 39.9 |
| Finish/Coating | Tin-Plated |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Color Code | Gray |
| Panduit Die Index Number | P29 |
| Burndy Die Index Number | 8 |
| Wire Strip Length (mm) | 15.8 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry. |
Brand Name - LCAX4-38-L - Package Information
| UPC | 07498343418 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0328 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Brand Name - LCAX4-38-L - Videos
| Video URL 1 | Click to View |
|---|---|
| Video URL 2 | Click to View |
Documents and Downloads
Documents and Downloads
