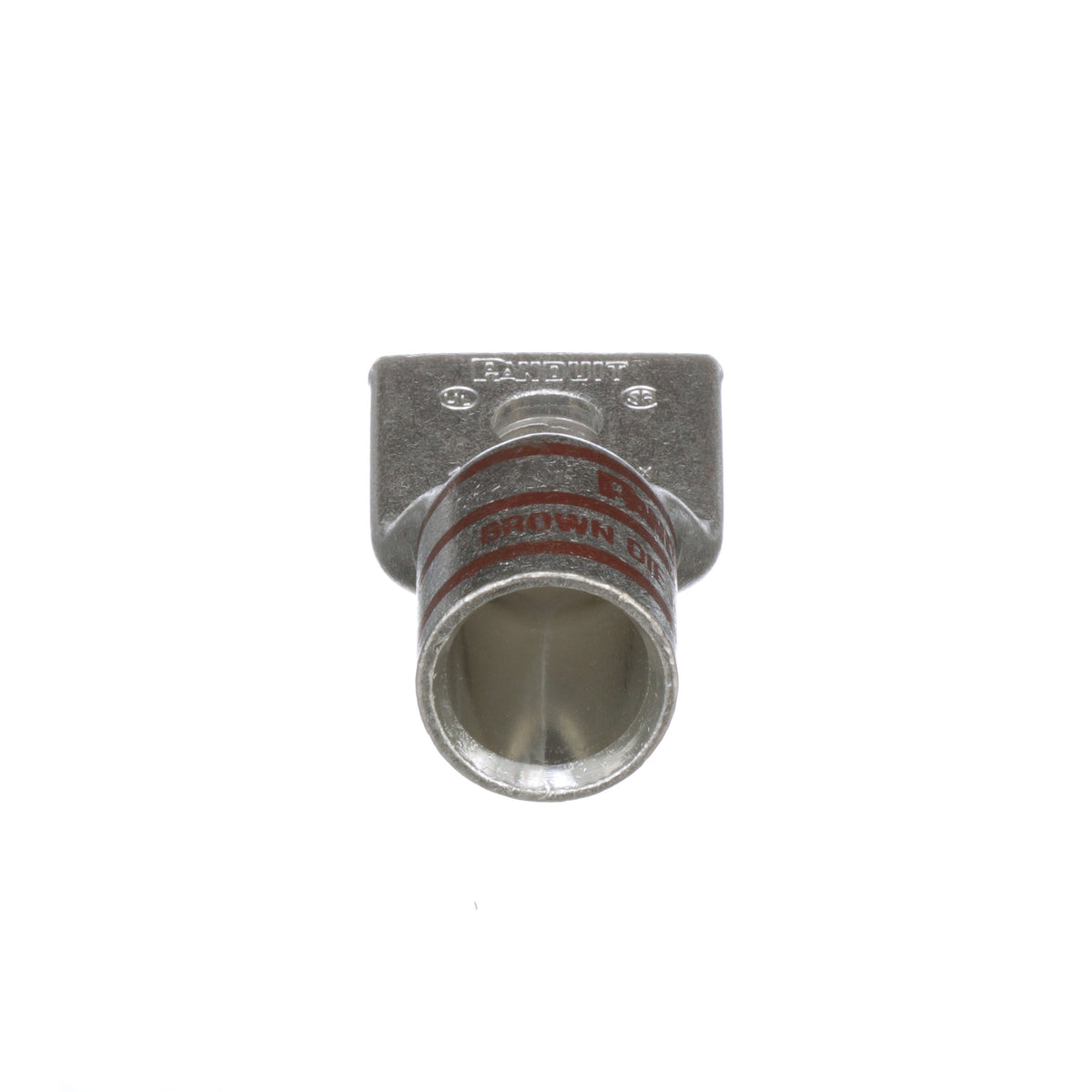

Panduit LCAX450-12-6 | Pan-Lug Comp. Lug, Tin Plt Copper, Strt, One...
Description
Description
Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.

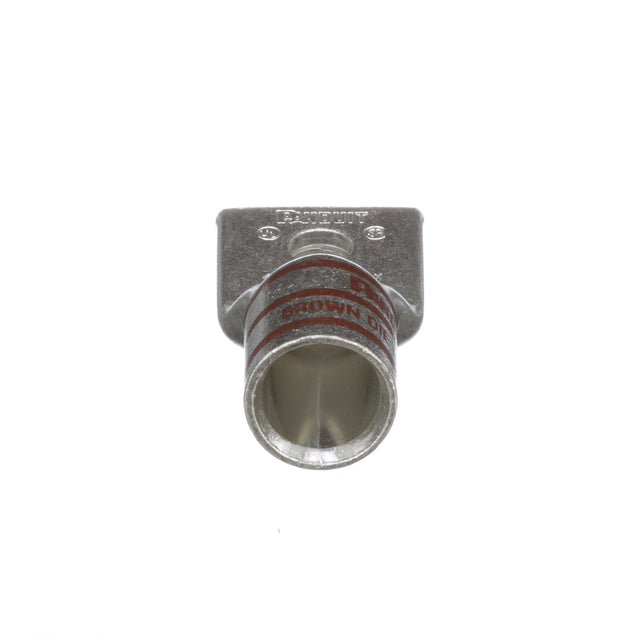

The LCAX450-12-6 Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full cond uctor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90C.
Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCAX, Copper Conductor, 450 kcmil Class G, H, I, K, M, 444.4 kcmil DLO Conductor, Die Code: P87, 35 kV, 1/2 in Stud, Straight Tongue, 1.7 in W x 0.26 in THK Tongue, 3.6 in Overall Length, Standard With Inspection Window Barrel, 0.92 in ID x 1.19 in OD x 1.4 in L Barrel, 1-7/16 in L Wire Strip, 90 deg C, 1-7/16 in Mounting Hole, Tin Plated Copper, Brown
Panduit - LCAX450-12-6 - Features
- Can be used with code conductor and flex conductor class: G, H, I, K, M and Diesel Locomotive
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- American Bureau of Shipping Approved
Specifications
Specifications
Panduit - LCAX450-12-6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCAX450-12-6 |
| Barrel | Standard |
| Bolt Hole | 1/2 Inch |
| Gauge | 450Kcmil (Aka Mcm) |
| Holes | 1 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Flex Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (mm) | 0 |
| Class G Copper Flex Conductor Size (kcmil) | 450 |
| Class H Copper Flex Conductor Size (kcmil) | 450 |
| Class I Copper Flex Conductor Size (kcmil) | 450 |
| Class K Copper Flex Conductor Size (kcmil) | 450 |
| Class M Copper Flex Conductor Size (kcmil) | 450 |
| DLO Copper Flex Conductor Size (kcmil) | 444.4 |
| Barrel Length (In.) | 1.4 |
| Barrel Length (mm) | 35.6 |
| Tongue Width (In.) | 1.7 |
| UPC | 07498343597 |
