Brand: Panduit
|
SKU:
PAN-LCAX450-58-6

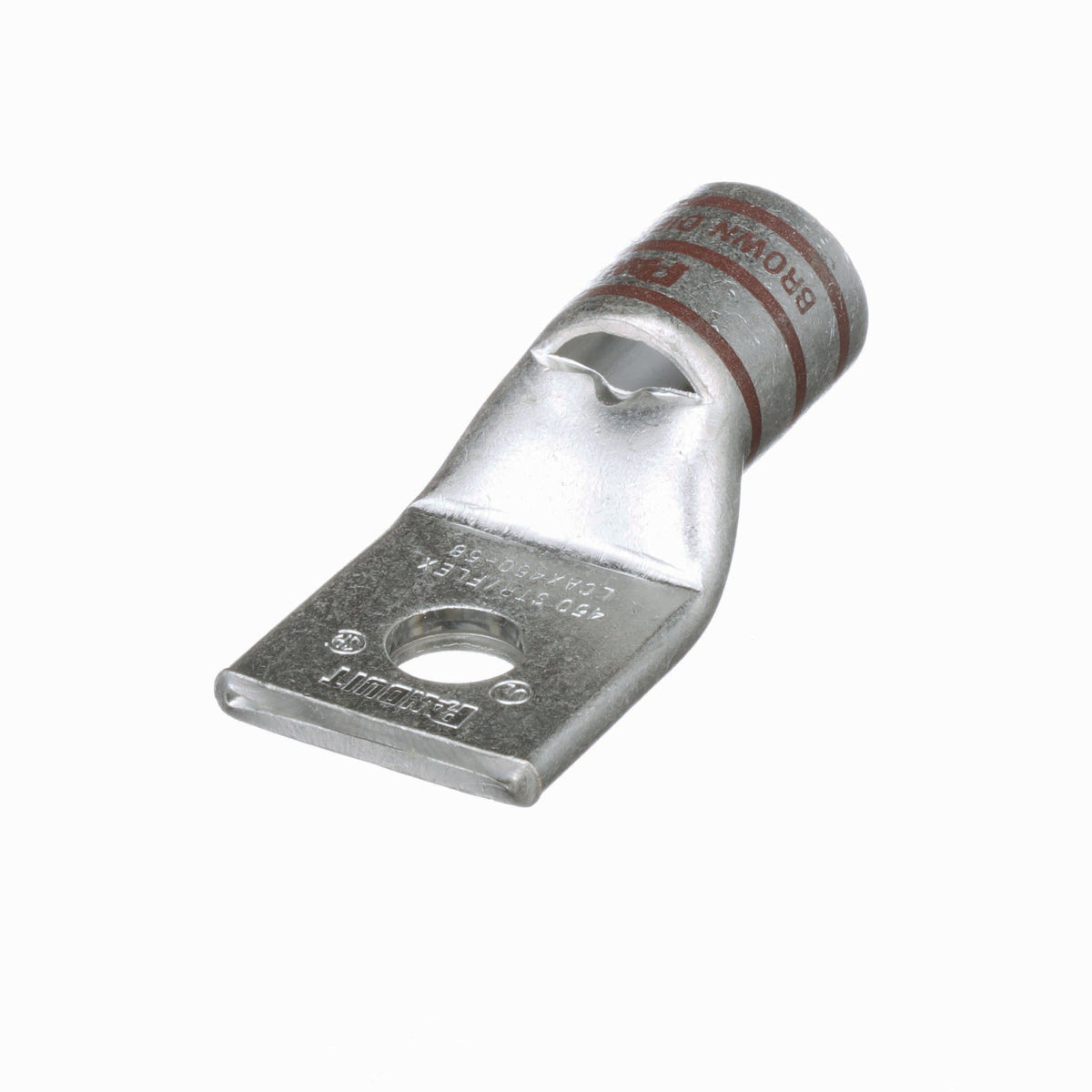

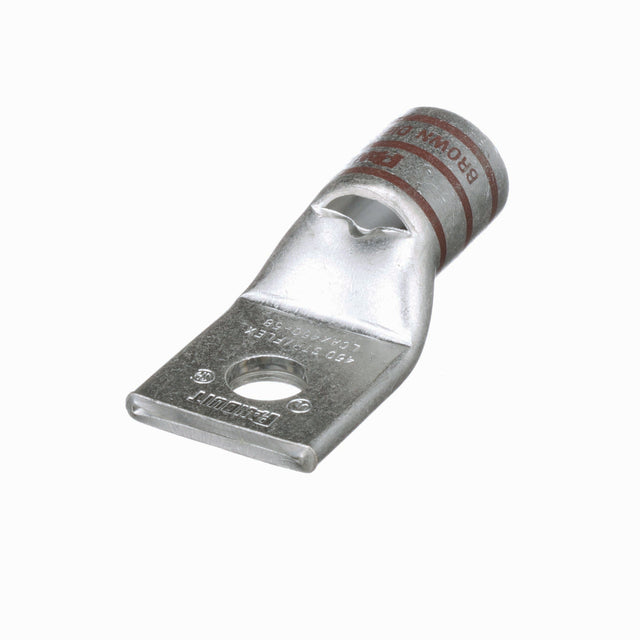

Panduit LCAX450-58-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498343600
Regular price
$37.86
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCAX450-58-6 | Tin-Plated Copper Compression Connectors - L...
Regular price
$37.86
Unit price
Brand: Panduit
|
SKU:
PAN-LCAX450-58-6
Regular price
$37.86
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCAX, Copper Conductor, 450 kcmil Class G, H, I, K, M, 444.4 kcmil DLO Conductor, Die Code: P87, 35 kV, 5/8 in Stud, Straight Tongue, 1.7 in W x 0.26 in THK Tongue, 3.73 in Overall Length, Standard With Inspection Window Barrel, 0.92 in ID x 1.19 in OD x 1.4 in L Barrel, 1-7/16 in L Wire Strip, 90 deg C, 1-7/16 in Mounting Hole, Tin Plated Copper, Brown
Features + Benefits
- Color-coded bands for proper die selection and crimp placement
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Tin-plated to inhibit corrosion
- Inspection window to assure complete conductor insertion
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
Panduit LCAX450-58-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498343600 Key Specs
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.952 |
| Stud Hole Size (mm) | 15.9 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.4 |
| Barrel Length (mm) | 35.6 |
| Tongue Type | Standard Tongue Width |
| Tongue Width (In.) | 1.7 |
| Tongue Width (mm) | 43.2 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.26 |
| Tongue Thickness (mm) | 6.6 |
| Overall Length (In.) | 3.73 |
| Overall Length (mm) | 94.7 |
| Color Code | Brown |
| Panduit Die Index Number | P87 |
| Burndy Die Index Number | 20 |
| Wire Strip Length (In.) | 14,375 |
| Wire Strip Length (mm) | 36.5 |
Panduit LCAX450-58-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498343600 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCAX8-10-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCAX450-58-6 | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCAX450-58-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498343600 Environmental Information
| Panduit's RoHS Statement | Download and View |
