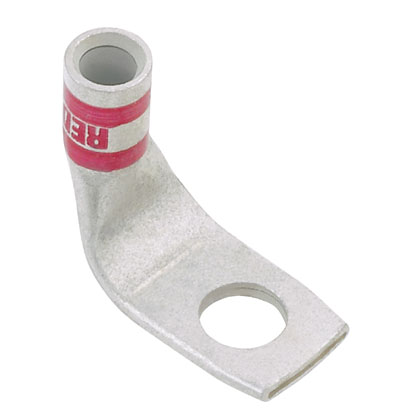

Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCAX, Copper Conductor, 6 AWG Class B, C, G, H, I, K, M and DLO Conductor, Die Code: P24, 35 kV, 5/16 in Stud, 90 deg Long Tongue, 0.74 in L x 0.56 in W x 0.07 in THK Tongue, 1.15 in Overall Length, Standard With Inspection Window Barrel, 0.22 in ID x 0.31 in OD x 0.48 in L Barrel, 9/16 in L Wire Strip, 90 deg C, 9/16 in Mounting Hole, Tin Plated Copper, Blue
Features + Benefits
- Color-coded bands for proper die selection and crimp placement
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Tin-plated to inhibit corrosion
- Inspection window to assure complete conductor insertion
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
Panduit LCAX6-56F-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498343377 Key Specs
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.491 |
| Stud Hole Size (mm) | 7.9 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.48 |
| Barrel Length (mm) | 12.2 |
| Tongue Type | Standard Tongue Width |
| Tongue Width (In.) | 0.56 |
| Tongue Width (mm) | 14.2 |
| Tongue Angle | 90° |
| Tongue Thickness (In.) | 0.07 |
| Tongue Thickness (mm) | 1.8 |
| Overall Length (In.) | 1.15 |
| Overall Length (mm) | 29.2 |
| Color Code | Blue |
| Panduit Die Index Number | P24 |
| Burndy Die Index Number | 7 |
| Wire Strip Length (In.) | 42,614 |
| Wire Strip Length (mm) | 14.3 |
