Brand: Panduit
|
SKU:
PAN-LCAXN1/0-14-X
Panduit LCAXN1/0-14-X | Pan-Lug Copper Compression Connectors - Lugs
Regular price
$10.18
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCAXN1/0-14-X | Pan-Lug Copper Compression Connectors - Lugs
Regular price
$10.18
Unit price
Brand: Panduit
|
SKU:
PAN-LCAXN1/0-14-X
Regular price
$10.18
Unit price
Shipping calculated at checkout.
Description
Description

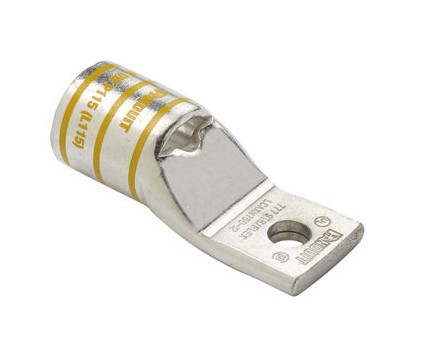

Panduit LCAXN1/0-14-X | Pan-Lug Copper Compression Connectors - Lugs
Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.
Specifications
Specifications
Panduit - LCAXN1/0-14-X - Package Contents
| UPC | 61305625764 |
|---|---|
| Std. Pkg. Qty. | 10 |
| Std. Pkg. Volume (cf) | 0.0328 |
Panduit - LCAXN1/0-14-X - Specifications
| Product Type | Compression Lug |
|---|---|
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Narrow |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Copper Conductor Size | 1/0 AWG |
| Class G Copper Flex Conductor Size | 1/0 AWG |
| Class H Copper Flex Conductor Size | 1/0 AWG |
| Class I Copper Flex Conductor Size | 1/0 AWG |
| Class K Copper Flex Conductor Size | 1/0 AWG |
| Class M Copper Flex Conductor Size | 1/0 AWG |
| DLO Copper Flex Conductor Size | 1/0 AWG |
| Barrel Length (In.) | 0.98 |
