Panduit LCAXN2/0-38-X | Tin-Plated Copper Compression Connectors - ...
Description
Description
Panduit Pan-Lug compression connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet network equipment building systems (NEBS) level 3 requirements as tested by Telcordia Technologies. NEBS level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment. Panduit Pan-Lug compression connectors are designed for use with many different code and flex conductor types and are available in a broad range of styles and sizes including copper 1-hole, 2-hole and blank tongue lugs and splices; aluminum 1-hole and 2-hole lugs and splices and copper in-line reducing splices. Panduit offers a wide assortment of Pan-Lug Power connectors to meet customer needs and today's application requirements.

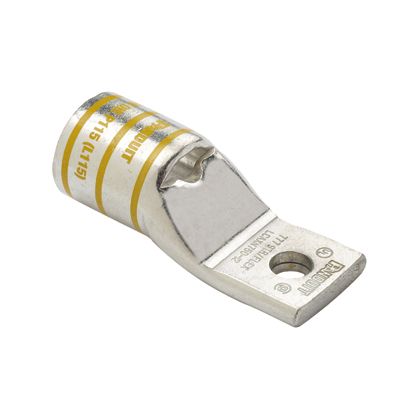

Panduit Pan-Lug Lug Compression Connector, 1-Hole Type LCAXN, Series: LCAXN, Stranded/Flex Copper Conductor, 2/0 AWG Conductor, Die Code: P45, 35 kV, 3/8 in Stud, Narrow/Straight Tongue, 0.64 in W x 0.16 in THK Tongue, 2.36 in Overall Length, Standard Barrel, 0.51 in ID x 0.64 in OD x 1.14 in L Barrel, 1-3/16 in L Wire Strip, 90 deg C, 0.41 in Mounting Hole, Tin Plated Copper, Black
Features + Benefits
- Narrow tongue width for limited space applications
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel locomotive
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- UL Listed and CSA Certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit and specified competitor crimping tools and dies
Panduit LCAXN2/0-38-X Key Specs
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.525 |
| Tongue Type | Narrow Tongue Width |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.16 |
| Tongue Thickness (mm) | 4 |
| Tongue Width (In.) | 0.64 |
| Tongue Width (mm) | 16.2 |
| Overall Length (In.) | 2.36 |
| Overall Length (mm) | 59.9 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.14 |
| Barrel Length (mm) | 28.9 |
| Wire Strip Length (In.) | 1.18 |
| Wire Strip Length (mm) | 30.1 |
Panduit LCAXN2/0-38-X Data Sheets
| Part Drawings | Copper Lug - One-Hole, Narrow Tongue, Standard Flex Barrel | Download and View |
| Installation Documents | Copper Compression Connector Installation | Download and View |
