Brand: Panduit
|
SKU:
DRC-042709

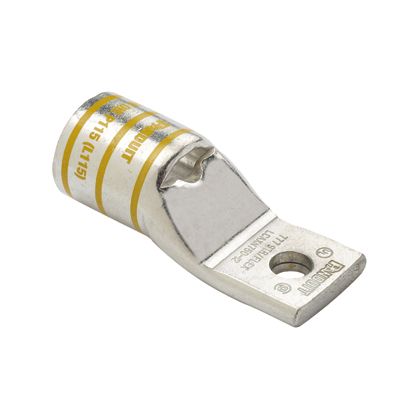

Panduit LCAXN4/0-38-X | Pan-Lug LCAXN4/0-38-X Comp. Lug, Narrow Flex, Tin Plt Cu, Strt, One 0.37" Stud
Regular price
$154.38
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCAXN4/0-38-X | Pan-Lug LCAXN4/0-38-X Comp. Lug, Narrow Fle...
Regular price
$154.38
Unit price
Description
Description
Panduit LCAXN4/0-38-X | Pan-Lug LCAXN4/0-38-X Comp. Lug, Narrow Flex, Tin Plt Cu, Strt, One 0.37" Stud
One-hole, flex lug, narrow tongue, 4/0 AWG wire, 3/8 stud hole.
Specifications
Specifications
Panduit - LCAXN4/0-38-X - Product Categories
- Wire Termination
- Mechanical & Compression Lugs & Splices
Panduit - LCAXN4/0-38-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCAXN4/0-38-X |
| Item Description | Pan-Lug LCAXN4/0-38-X Comp. Lug, Narrow Flex, Tin Plt Cu, Strt, One 0.37" Stud |
| Copper Conductor Size (AWG) | 4/0 |
| Copper Conductor Size (kcmil) | 212 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Barrel Length (In.) | 1.03 |
| Barrel Length (mm) | 26.2 |
| Tongue Width (In.) | 0.81 |
| Tongue Width (mm) | 20.6 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.2 |
| Tongue Thickness (mm) | 5.1 |
| Overall Length (In.) | 2.32 |
| Finish/Coating | Tin-Plated |
| Wire Strip Length (In.) | 1.17 |
| Wire Strip Length (mm) | 75 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window,narrow tongue for limited space apps. |
Brand Name - LCAXN4/0-38-X - Package Information
| UPC | 07498383308 |
|---|---|
| Standard Package Quantity | 10 |
| Standard Package Volume (cf) | 0.0328 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Brand Name - LCAXN4/0-38-X - Videos
| Video URL 1 | Click to View |
|---|---|
| Video URL 2 | Click to View |
