Brand: Panduit
|
SKU:
1049185

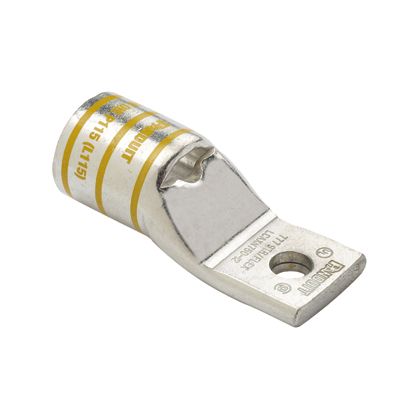

Panduit LCAXN4/0-38-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498383308
Regular price
$18.41
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCAXN4/0-38-X | Tin-Plated Copper Compression Connectors - ...
Regular price
$18.41
Unit price
Description
Description
Panduit Compression Lug Connector, 1-Hole, Series: LCAXN, Flexible Copper Conductor, 4/0 AWG Conductor, Die Code: P54, 35 kV, 3/8 in Stud, Narrow/Straight Tongue, 0.81 in W x 0.2 in THK Tongue, 4.69 in Overall Length, Standard Barrel, 1.03 in L Barrel, Tin Plated, 90 deg C, 1.17 in Mounting Hole, Copper, Purple
Features + Benefits
- Tin plated to inhibit corrosion
- Color coded barrel
- Inspection window to visually assure full conductor insertion
- Narrow tongue width for limited space applications
Panduit LCAXN4/0-38-X Key Specs
| Copper Conductor Size (AWG) | 4/0 |
| Copper Conductor Size (kcmil) | 212 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Tongue Type | Narrow |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.2 |
| Tongue Thickness (mm) | 5.1 |
| Tongue Width (In.) | 0.81 |
| Tongue Width (mm) | 20.6 |
| Overall Length (In.) | 2.32 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.03 |
| Barrel Length (mm) | 26.2 |
| Sub Brand | Pan-Lug |
| Wire Strip Length (In.) | 1.17 |
| Wire Strip Length (mm) | 75 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window,narrow tongue for limited space apps. |
Panduit LCAXN4/0-38-X Data Sheets
| Part Drawings | Copper, Standard Barrel, Narrow Tongue, One-Hole Flex Lug: LCAXN4/0-38-X | Download and View |
| Installation Documents | Copper Compression Connector Installation Instructions | Download and View |
