Brand: Panduit
|
SKU:
PAN-LCB1/0-10

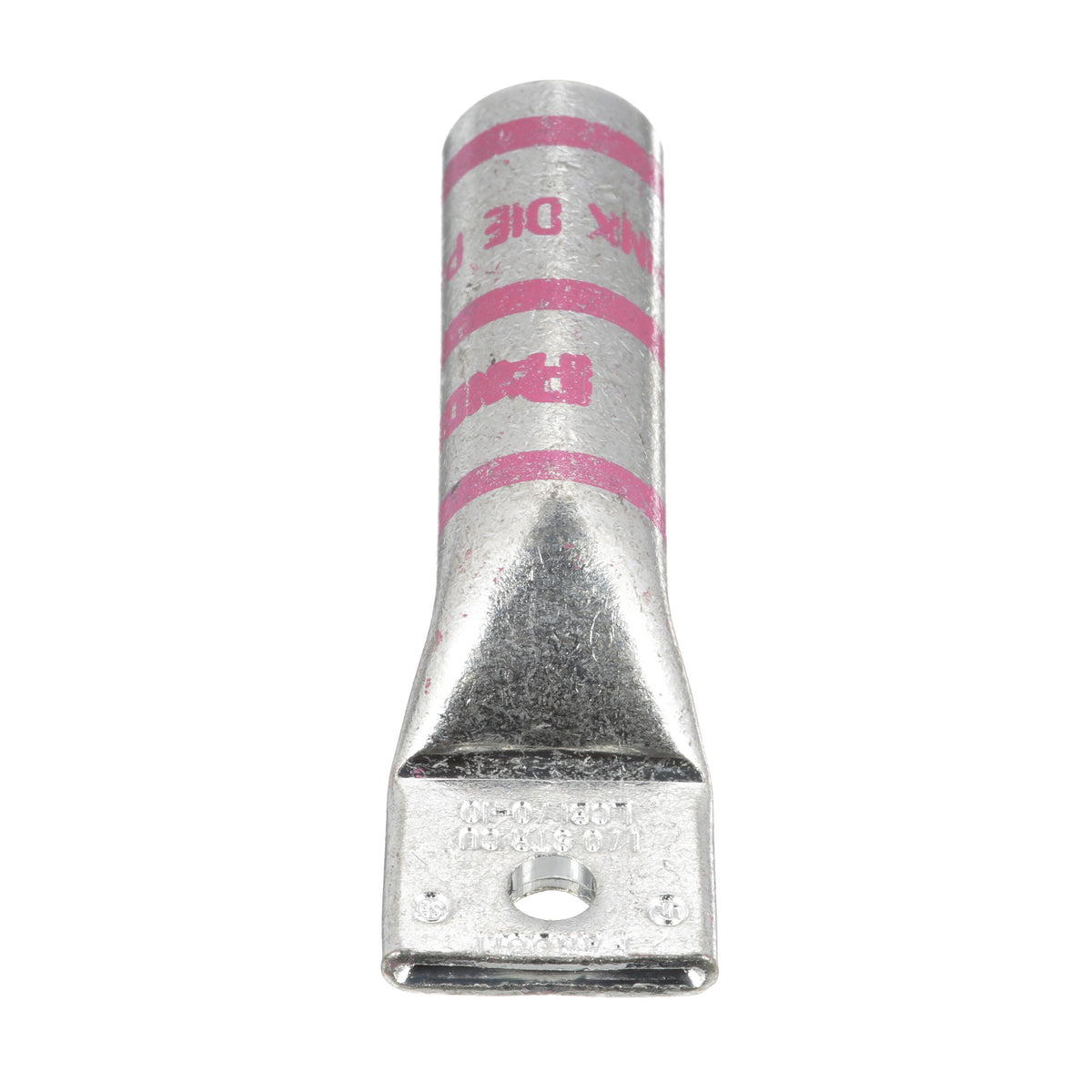

Panduit LCB1/0-10-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338238
Regular price
$9.28
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCB1/0-10-X | Tin-Plated Copper Compression Connectors - Lu...
Regular price
$9.28
Unit price
Description
Description
Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCB, Stranded Copper Conductor, 1/0 AWG Conductor, Die Code: P42, 35 kV, #10 Stud, Straight Tongue, 0.76 in W x 0.12 in THK Tongue, 2.41 in Overall Length, Long Without Inspection Window Barrel, 0.39 in ID x 0.52 in OD x 1.44 in L Barrel, 1-1/2 in L Wire Strip, 90 deg C, 1-1/2 in Mounting Hole, Copper, Pink
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin plated to inhibit corrosion
- For use with flexible copper conductors
Panduit LCB1/0-10-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338238 Key Specs
| Copper Conductor Size (AWG) | 1/0 |
| Copper Conductor Size (kcmil) | 106 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 0.19 |
| Stud Hole Size (mm) | 4.8 |
| Barrel Type | Long Barrel Length without Inspection Window |
| Barrel Length (In.) | 1.44 |
| Barrel Length (mm) | 36.6 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.76 |
| Tongue Width (mm) | 19.3 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.12 |
| Tongue Thickness (mm) | 3 |
| Overall Length (In.) | 2.41 |
| Overall Length (mm) | 61.2 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Color Code | Pink |
| Panduit Die Index Number | P42 |
Panduit LCB1/0-10-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338238 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCB8-10-L Product Page! | Download and View |
| Part Drawings | Part Drawing - PDF - LCB1_0-10-X | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCB1/0-10-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338238 Environmental Information
| Panduit's RoHS Statement | Download and View |
