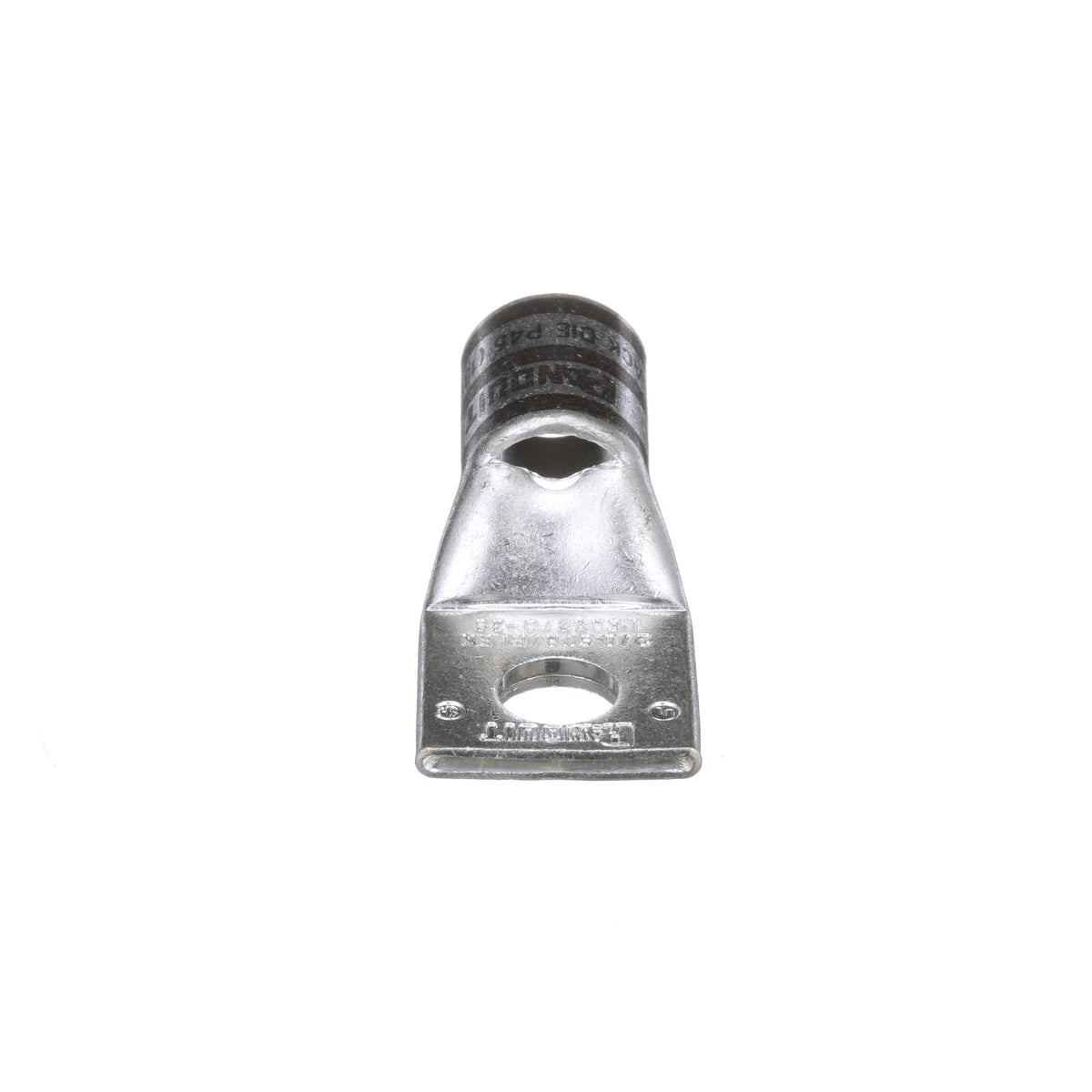

Panduit LCB2/0-38-X | Pan-Lug Comp. Lug, 2/0, Long, Tin Plt Copper, Strt, One 3/8" Stud
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCB2/0-38-X | Pan-Lug Comp. Lug, 2/0, Long, Tin Plt Copper,...
Description
Description
Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.
One-hole, long barrel lug, 2/0 AWG wire, 3/8" stud hole.
Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCB, Copper/Stranded Conductor, 2/0 AWG Conductor, Die Code: P45, 35 kVAC, 3/8 in Stud, Straight Tongue, 0.85 in W x 0.13 in THK Tongue, 2.82 in Overall Length, Long without Inspection Window Barrel, 0.45 in ID x 0.58 in OD x 1.5 in L Barrel, 1-9/16 in L Wire Strip, Tin Plated Finish, 90 deg C, 1.56 in Mounting Hole, Copper, Black
Panduit - LCB2/0-38-X - Features
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin plated to inhibit corrosion
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- UL Listed and CSA Certified for wide wire range-taking capability when crimped with PANDUIT(TM) Uni-Die(TM) Dieless Crimping Tools
- Tested by Telcordia - meets NEBS Level 3
- American Bureau of Shipping Approved
Specifications
Specifications
Panduit - LCB2/0-38-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCB2/0-38-X |
| Barrel | Long |
| Bolt Hole | 3/8 Inch |
| Gauge | 2/0 Awg |
| Holes | 1 Hole |
| Inspection Hole | No |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Long |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | No |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Copper Code Conductor Size (AWG) | 2/0 |
| Barrel Length (In.) | 1.5 |
| Barrel Length (mm) | 38.1 |
| Tongue Width (In.) | 0.85 |
| Tongue Width (mm) | 21.6 |
| Tongue Thickness (In.) | 0.13 |
| Tongue Thickness (mm) | 3.3 |
| Overall Length (In.) | 2.82 |
| Overall Length (mm) | 71.6 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164, ABS approved, NEBS Level 3 |
| UPC | 07498390130 |
