Panduit LCB2-12-Q | Pan-Lug Copper Compression Connectors - Lugs
Regular price
$6.36
Unit price
Brand: Panduit
|
SKU:
PAN-LCB2-12-Q
Regular price
$6.36
Unit price
Description
Description
Panduit LCB2-12-Q | Pan-Lug Copper Compression Connectors - Lugs

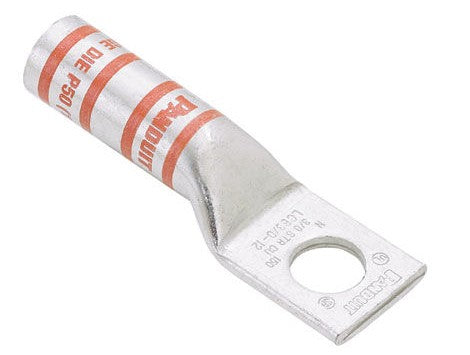

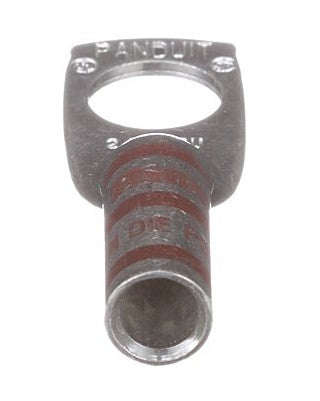

Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.
Specifications
Specifications
Panduit - LCB2-12-Q - Package Contents
| UPC | 07498312655 |
|---|---|
| Std. Pkg. Qty. | 25 |
| Std. Pkg. Volume (cf) | 0.0328 |
Panduit - LCB2-12-Q - Specifications
| Product Type | Compression Lug |
|---|---|
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Long |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | No |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Copper Conductor Size | 2 AWG |
| Barrel Length (In.) | 1.16 |
| Barrel Length (mm) | 29.5 |
| Tongue Width (In.) | 0.75 |
| Tongue Width (mm) | 19.1 |
| Tongue Thickness (In.) | 0.08 |
| Tongue Thickness (mm) | 2 |
| Overall Length (In.) | 2.58 |
