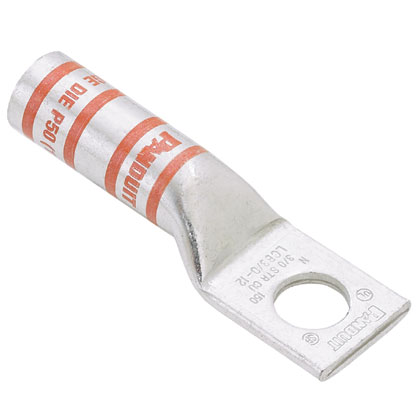

Panduit LCB3/0-38-X | Pan-Lug Copper Compression Connectors - Lugs
Description
Description
Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.
One-hole, long barrel lug, 3/0 AWG wire, 3/8 stud hole.
Panduit Compression Lug, 1-Hole, Series: LCB, Stranded Copper Conductor, 3/0 AWG Conductor, Die Code: P50, 35 kV, 3/8 in Stud, Straight Tongue, 0.96 in W x 0.13 in THK Tongue, 2.87 in Overall Length, Long Barrel, 0.51 in ID x 0.64 in OD x 1.5 in L Barrel, Specifications: 1-9/16 in L Wire Strip, Tin Plated, 90 deg C, 1.56 in Mounting Hole, Copper, Orange
Panduit - LCB3/0-38-X - Features
- Tin plated to inhibit corrosion
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- High conductivity seamless copper tube
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- UL Listed and CSA Certified for wide wire range-taking capability when crimped with PANDUIT(TM) Uni-Die(TM) Dieless Crimping Tools
- Tested by Telcordia - meets NEBS Level 3
- American Bureau of Shipping Approved
Specifications
Specifications
Panduit - LCB3/0-38-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCB3/0-38-X |
| Barrel | Long |
| Bolt Hole | 3/8 Inch |
| Gauge | 3/0 Awg |
| Holes | 1 Hole |
| Inspection Hole | No |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Long |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | No |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Copper Code Conductor Size (AWG) | 3/0 |
| Barrel Length (In.) | 1.5 |
| Barrel Length (mm) | 38.1 |
| Tongue Width (In.) | 0.96 |
| Tongue Width (mm) | 24.4 |
| Tongue Thickness (In.) | 0.13 |
| Tongue Thickness (mm) | 3.3 |
| Overall Length (In.) | 2.87 |
| Overall Length (mm) | 72.9 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164, ABS approved, NEBS Level 3 |
| UPC | 07498390134 |
Panduit - LCB3/0-38-X - Videos
| Panduit LCB3/0-38-X Video 1 | Click to View |
|---|---|
| Panduit LCB3/0-38-X Video 2 | Click to View |
