LCB350-78-X
Panduit LCB350-78-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390156
Regular price
$15.52
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCB350-78-X | Tin-Plated Copper Compression Connectors - Lu...
Regular price
$15.52
Unit price
Description
Description

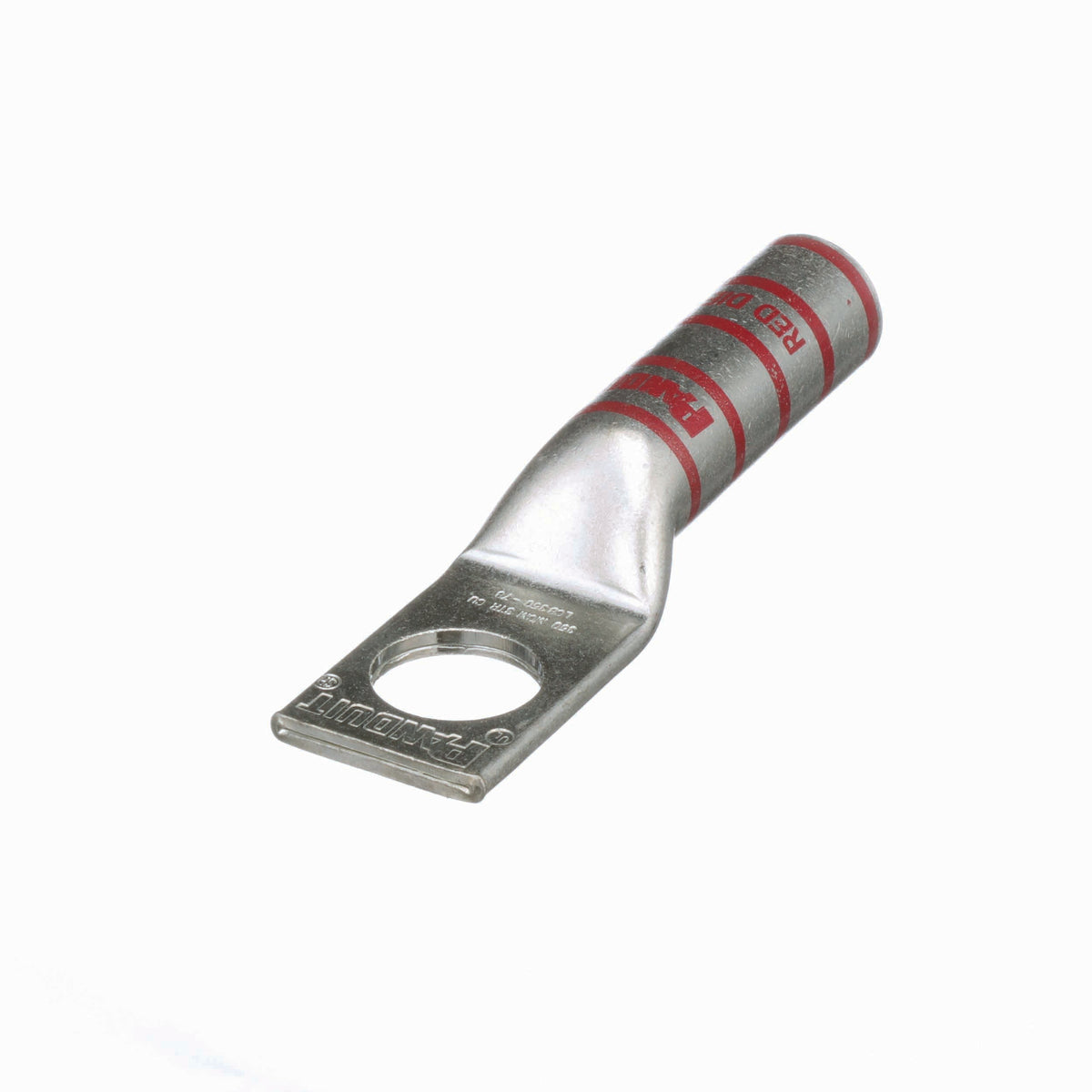

Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCB, Copper/Stranded Conductor, 350 kcmil Conductor, Die Code: P71, 35 kVAC, 7/8 in Stud, Straight Tongue, 1.28 in W x 0.17 in THK Tongue, 3.89 in Overall Length, Long without Inspection Window Barrel, 0.7 in ID x 0.88 in OD x 2.24 in L Barrel, 2-5/16 in L Wire Strip, 90 deg C, 2.31 in Mounting Hole, Tin Plated Copper, Red
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin plated to inhibit corrosion
- Without inspection window lug
- Color coded barrel
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Panduit LCB350-78-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390156 Key Specs
| Copper Conductor Size (kcmil) | 350 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.954 |
| Stud Hole Size (mm) | 22.2 |
| Barrel Type | Long Barrel Length without Inspection Window |
| Barrel Length (In.) | 2.24 |
| Barrel Length (mm) | 56.9 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.28 |
| Tongue Width (mm) | 32.5 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.17 |
| Tongue Thickness (mm) | 4.3 |
| Overall Length (In.) | 4.78 |
| Overall Length (mm) | 121.4 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Color Code | Red |
| Panduit Die Index Number | P71 |
| Burndy Die Index Number | 18 |
