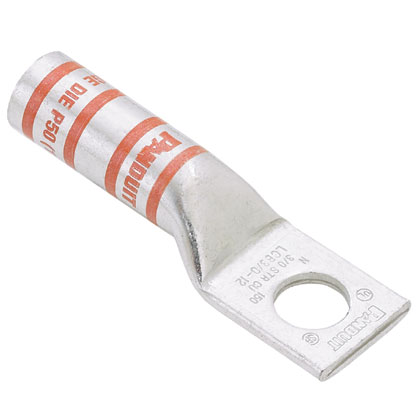

Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCB, Copper/Stranded Conductor, 4 to 3 AWG, 2 AWG Conductor, Die Code: P29, 35 kVAC, 1/4 in Stud, Straight Tongue, 0.55 in W x 0.09 in THK Tongue, 1.95 in Overall Length, Long without Inspection Window Barrel, 0.28 in ID x 0.38 in OD x 1.05 in L Barrel, 1-1/8 in L Wire Strip, Tin Plated Finish, 90 deg C, 1.13 in Mounting Hole, Copper, Gray
Features + Benefits
- Tin plated to inhibit corrosion
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- High conductivity seamless copper tube
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Panduit LCB4-14-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390180 Key Specs
| Copper Conductor Size (AWG) | #4 |
| Copper Conductor Size (kcmil) | 42 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Barrel Type | Long Barrel Length without Inspection Window |
| Barrel Length (In.) | 1.05 |
| Barrel Length (mm) | 26.7 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.55 |
| Tongue Width (mm) | 14 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.09 |
| Tongue Thickness (mm) | 2.3 |
| Overall Length (In.) | 1.95 |
| Overall Length (mm) | 49.5 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Color Code | Gray |
| Panduit Die Index Number | P29 |
