LCB400-12-6
Panduit LCB400-12-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390159
Regular price
$21.09
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCB400-12-6 | Tin-Plated Copper Compression Connectors - Lu...
Regular price
$21.09
Unit price
Description
Description

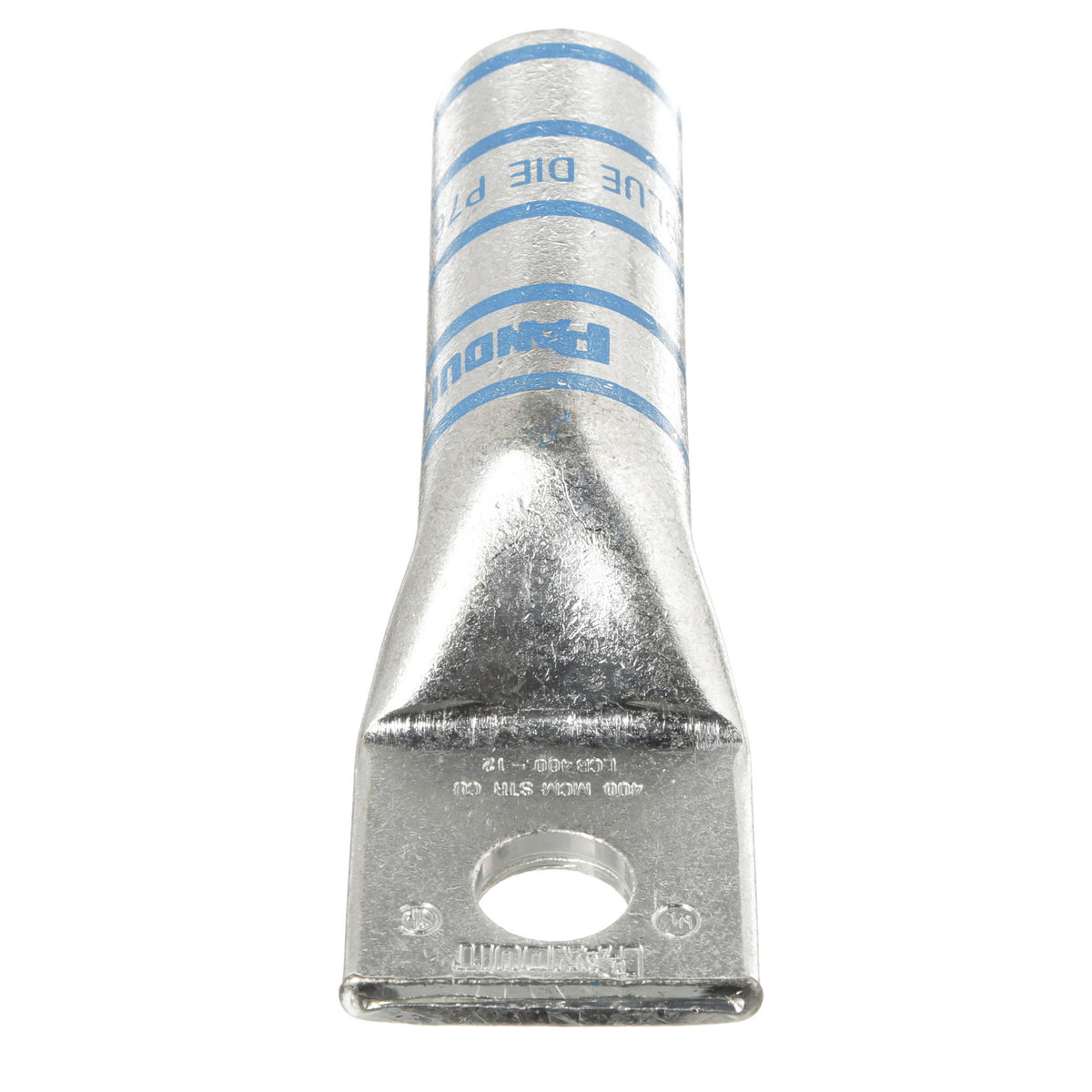

Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCB, Copper/Stranded Conductor, 400 kcmil Conductor, Die Code: P76, 35 kVAC, 1/2 in Stud, Straight Tongue, 1.39 in W x 0.18 in THK Tongue, 4.27 in Overall Length, Long without Inspection Window Barrel, 0.76 in ID x 0.95 in OD x 2.3 in L Barrel, 2-3/8 in L Wire Strip, Tin Plated Finish, 90 deg C, 2.38 in Mounting Hole, Copper, Blue
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin plated to inhibit corrosion
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Panduit LCB400-12-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390159 Key Specs
| Copper Conductor Size (kcmil) | 400 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.767 |
| Stud Hole Size (mm) | 12.7 |
| Barrel Type | Long Barrel Length without Inspection Window |
| Barrel Length (In.) | 2.3 |
| Barrel Length (mm) | 58.4 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.39 |
| Tongue Width (mm) | 35.3 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.18 |
| Tongue Thickness (mm) | 4.6 |
| Overall Length (In.) | 4.27 |
| Overall Length (mm) | 108.5 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Color Code | Blue |
| Panduit Die Index Number | P76 |
| Burndy Die Index Number | 19 |
Panduit LCB400-12-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390159 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCB8-10-L Product Page! | Download and View |
| Part Drawings | Part Drawing - PDF - LCB400-12-6 | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCB400-12-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390159 Environmental Information
| Panduit's RoHS Statement | Download and View |
