Brand: Panduit
|
SKU:
LCB500-12-6
Panduit LCB500-12-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390164
Regular price
$23.72
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCB500-12-6 | Tin-Plated Copper Compression Connectors - Lu...
Regular price
$23.72
Unit price
Description
Description

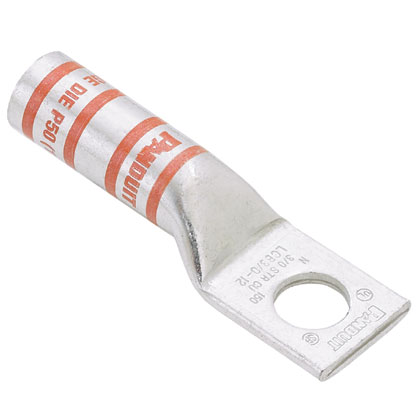

Panduit Compression Lug, 1-Hole, Series: LCB, Stranded Copper Conductor, 500 kcmil Conductor, Die Code: P87, 35 kV, 1/2 in Stud, Straight Tongue, 1.54 in W x 0.22 in THK Tongue, 4.53 in Overall Length, Long Barrel, 0.84 in ID x 1.06 in OD x 2.5 in L Barrel, Specifications: 2-9/16 in L Wire Strip, Tin Plated, 90 deg C, 2.56 in Mounting Hole, Copper, Brown
Features + Benefits
- Tin plated to inhibit corrosion
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- High conductivity seamless copper tube
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Panduit LCB500-12-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390164 Key Specs
| Copper Conductor Size (kcmil) | 500 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.767 |
| Stud Hole Size (mm) | 12.7 |
| Barrel Type | Long Barrel Length without Inspection Window |
| Barrel Length (In.) | 2.5 |
| Barrel Length (mm) | 63.5 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.54 |
| Tongue Width (mm) | 39.1 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.22 |
| Tongue Thickness (mm) | 5.6 |
| Overall Length (In.) | 4.53 |
| Overall Length (mm) | 115.1 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Color Code | Brown |
| Panduit Die Index Number | P87 |
| Burndy Die Index Number | 20 |
Panduit LCB500-12-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390164 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCB8-10-L Product Page! | Download and View |
| Part Drawings | Part Drawing - PDF - LCB500-12-6 | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCB500-12-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390164 Environmental Information
| Panduit's RoHS Statement | Download and View |
