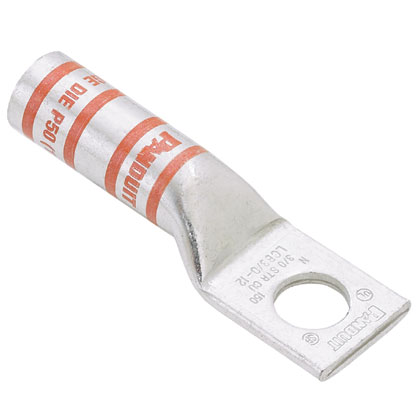

Panduit Compression Lug, 1-Hole, Series: LCB, Stranded Copper Conductor, 750 kcmil Conductor, Die Code: P106, 35 kV, 5/8 in Stud, Straight Tongue, 1.89 in W x 0.26 in THK Tongue, 5.98 in Overall Length, Long Barrel, 1.03 in ID x 1.3 in OD x 2.88 in L Barrel, Specifications: 2-15/16 in L Wire Strip, Tin Plated, 90 deg C, 2.94 in Mounting Hole, Copper, Black
Features + Benefits
- Tin plated to inhibit corrosion
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- High conductivity seamless copper tube
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Panduit LCB750-58-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390175 Key Specs
| Copper Conductor Size (kcmil) | 750 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.952 |
| Stud Hole Size (mm) | 15.9 |
| Barrel Type | Long Barrel Length without Inspection Window |
| Barrel Length (In.) | 2.88 |
| Barrel Length (mm) | 73.2 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.89 |
| Tongue Width (mm) | 48 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.26 |
| Tongue Thickness (mm) | 6.6 |
| Overall Length (In.) | 5.98 |
| Overall Length (mm) | 151.9 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Color Code | Black |
| Panduit Die Index Number | P106 |
| Burndy Die Index Number | 24 |
Panduit LCB750-58-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390175 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCB8-10-L Product Page! | Download and View |
| Part Drawings | Part Drawing - PDF - LCB750-58-6 | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCB750-58-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390175 Environmental Information
| Panduit's RoHS Statement | Download and View |
