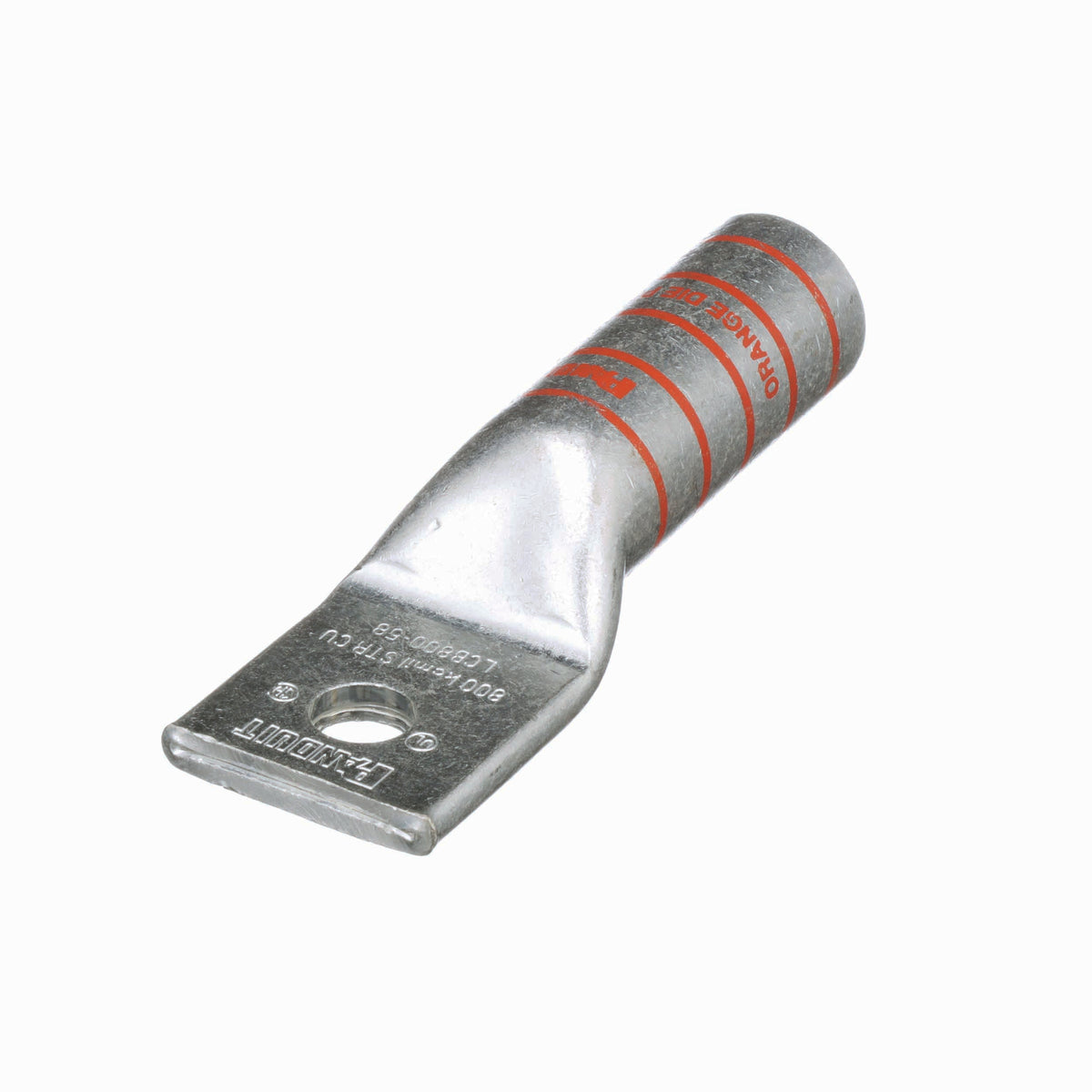

Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCB, Copper/Stranded Conductor, 800 kcmil Conductor, Die Code: P107, 35 kVAC, 5/8 in Stud, Straight Tongue, 1.95 in W x 0.29 in THK Tongue, 2.24 in Overall Length, Long without Inspection Window Barrel, 1.05 in ID x 1.35 in OD x 2.94 in L Barrel, 3 in L Wire Strip, 90 deg C, 3 in Mounting Hole, Tin Plated Copper, Orange
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin plated to inhibit corrosion
- Without inspection window lug
- Color coded barrel
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Panduit LCB800-58-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390177 Key Specs
| Copper Conductor Size (kcmil) | 800 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.952 |
| Stud Hole Size (mm) | 15.9 |
| Barrel Type | Long Barrel Length without Inspection Window |
| Barrel Length (In.) | 2.94 |
| Barrel Length (mm) | 74.7 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.95 |
| Tongue Width (mm) | 49.5 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.29 |
| Tongue Thickness (mm) | 7.3 |
| Overall Length (In.) | 6.06 |
| Overall Length (mm) | 153.9 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Color Code | Orange |
| Panduit Die Index Number | P107 |
| Burndy Die Index Number | 25 |
Panduit LCB800-58-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390177 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCB8-10-L Product Page! | Download and View |
| Part Drawings | Part Drawing - PDF - LCB800-58-6 | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
