Brand: Panduit
|
SKU:
PAN-LCBH2/0-12-X

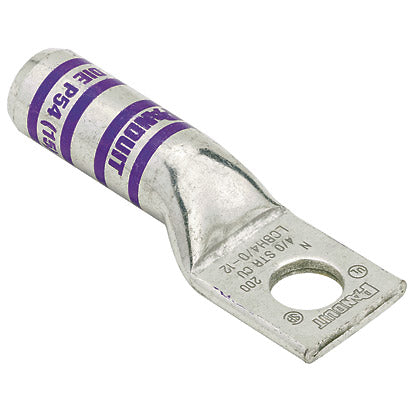

Panduit LCBH2/0-12-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390128
Regular price
$9.74
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCBH2/0-12-X | Tin-Plated Copper Compression Connectors - L...
Regular price
$9.74
Unit price
Brand: Panduit
|
SKU:
PAN-LCBH2/0-12-X
Regular price
$9.74
Unit price
Shipping calculated at checkout.
Description
Description
One-hole, long barrel lug with corona relief taper, 2/0 AWG wire, 1/2 stud hole.
Panduit LCBH2/0-12-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390128 Key Specs
| Copper Conductor Size (AWG) | 2/0 |
| Copper Conductor Size (kcmil) | 133.1 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.767 |
| Stud Hole Size (mm) | 12.7 |
| Barrel Type | Long Barrel Length without Inspection Window |
| Barrel Length (In.) | 1.5 |
| Barrel Length (mm) | 38.1 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.85 |
| Tongue Width (mm) | 21.6 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.13 |
| Tongue Thickness (mm) | 3.3 |
| Overall Length (In.) | 3.07 |
| Overall Length (mm) | 78 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Color Code | Black |
| Panduit Die Index Number | P45 |
Panduit LCBH2/0-12-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390128 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCBH4-38-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCBH2_0-12-X | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCBH2/0-12-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390128 Environmental Information
| Panduit's RoHS Statement | Download and View |
