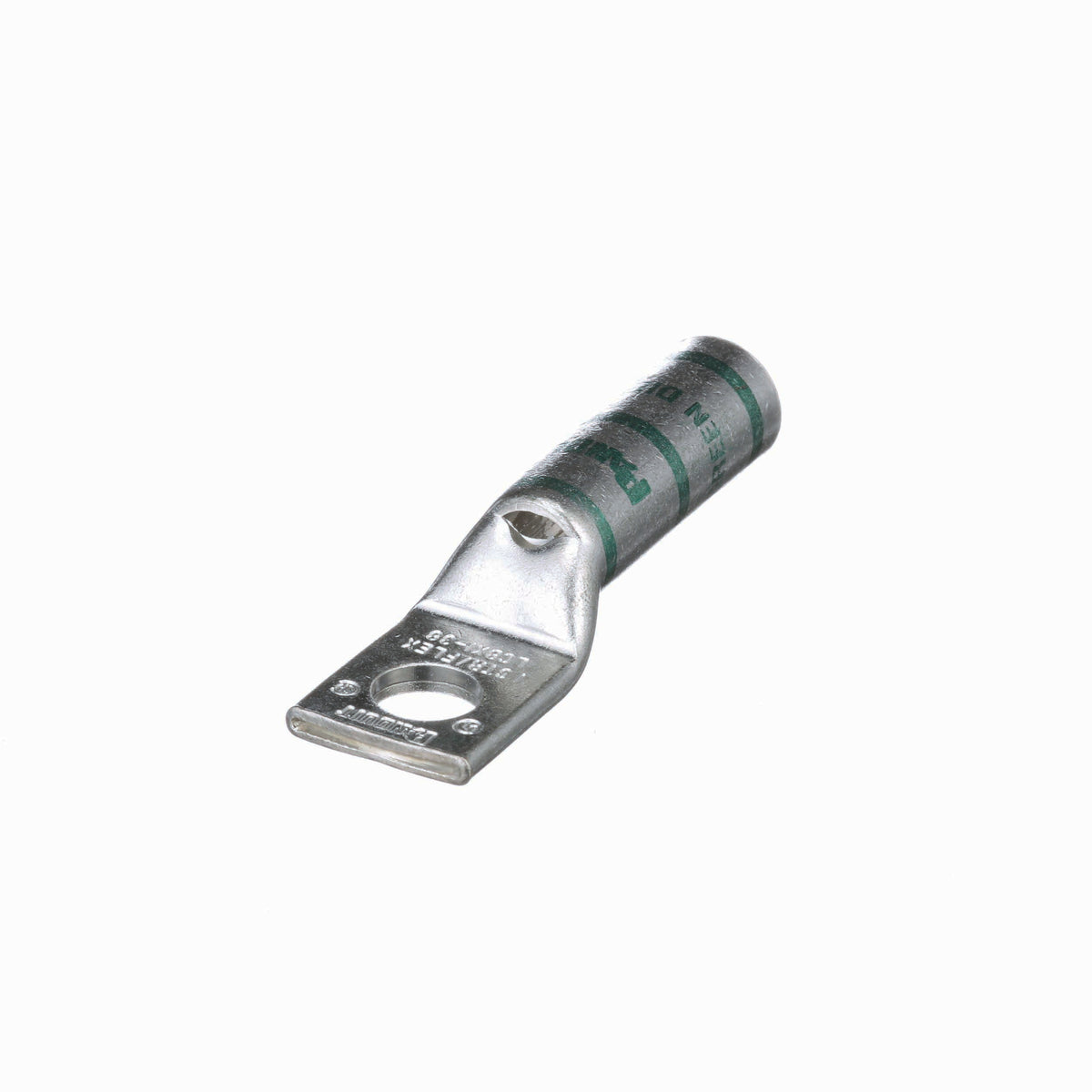

Panduit Pan-Lug Compression Lug, 1-Hole Flex, Series: LCBX, Copper Conductor, 1 AWG Class B, C, G, H, I, K, M and DLO Conductor, Die Code: P37, 35 kV, 3/8 in Stud, Standard/Straight Tongue, 0.76 in W x 0.12 in THK Tongue, 2.57 in Overall Length, Long/Standard with Inspection Window Barrel, 0.39 in ID x 0.52 in OD x 1.44 in L Barrel, 1-1/2 in L Wire Strip, Tin Plated, 90 deg C, 1-1/2 in Mounting Hole, Copper, Green
Features + Benefits
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- For use with flexible, extra-flexible and code stranded copper conductors
Panduit LCBX1-38-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498343676 Key Specs
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.95 |
| Stud Hole Size (mm) | 9.5 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.44 |
| Barrel Length (mm) | 36.6 |
| Tongue Type | Standard Tongue Width |
| Tongue Width (In.) | 0.76 |
| Tongue Width (mm) | 19.3 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.12 |
| Tongue Thickness (mm) | 3 |
| Overall Length (In.) | 2.57 |
| Overall Length (mm) | 65.3 |
| Color Code | Green |
| Panduit Die Index Number | P37 |
| Burndy Die Index Number | 11 |
| Wire Strip Length (In.) | 1.5 |
| Wire Strip Length (mm) | 38 |
Panduit LCBX1-38-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498343676 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCBX8-10-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCBX1-38-X | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
