Brand: Panduit
|
SKU:
LCBX2/0-14-X

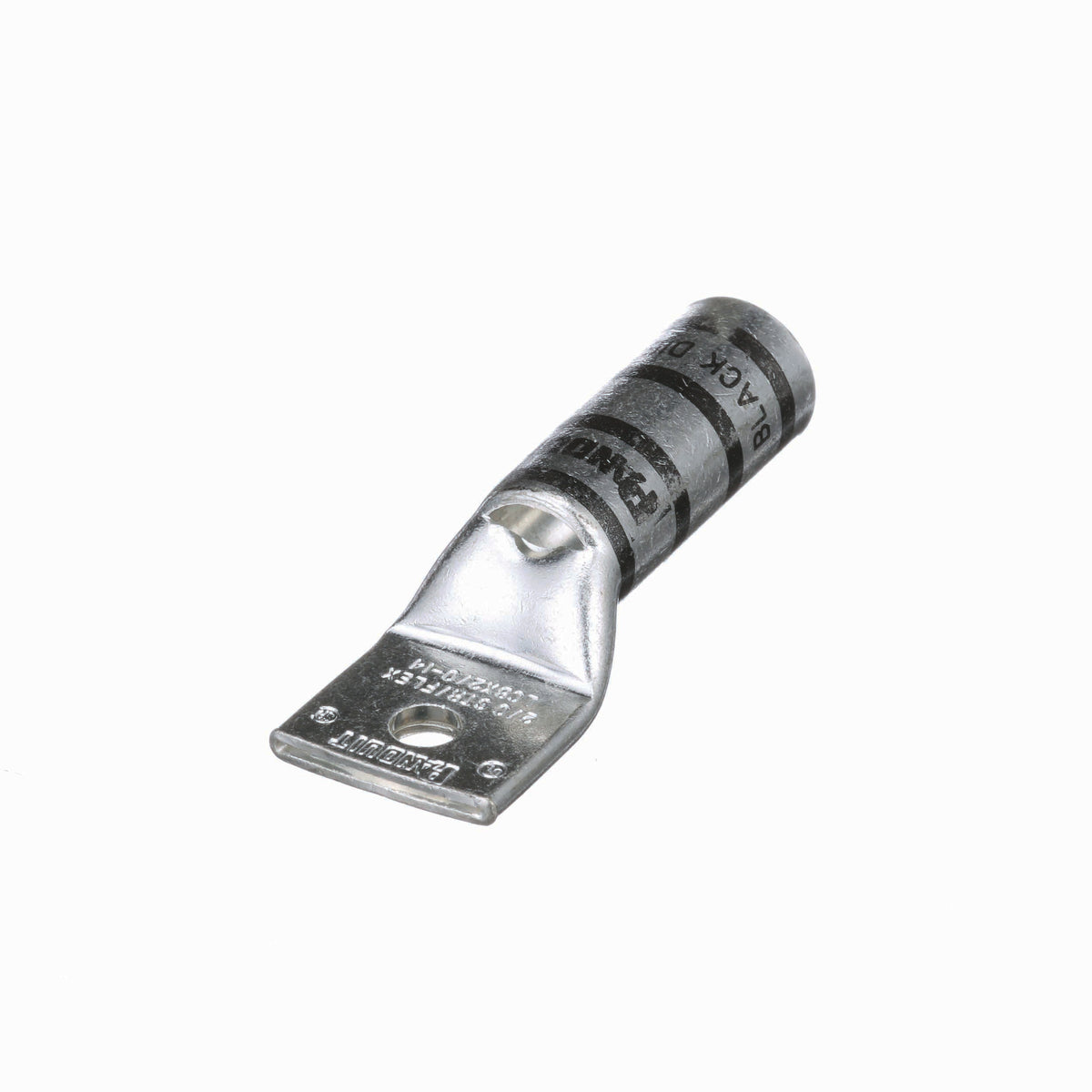

Panduit LCBX2/0-14-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498343694
Regular price
$9.74
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCBX2/0-14-X | Tin-Plated Copper Compression Connectors - L...
Regular price
$9.74
Unit price
Description
Description
Panduit Pan-Lug Lug Compression Connector, 1-Hole, Series: LCBX, 2/0 AWG Conductor, Die Code: P45, 35 kV, 1/4 in Stud, Straight Tongue, 0.96 in W x 0.13 in THK Tongue, 3.7 in Overall Length, Long Barrel, 1-1/2 in L Barrel, 90 deg C, 1-9/16 in Mounting Hole, Tin Plated Copper, Black
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Color coded barrel
Panduit LCBX2/0-14-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498343694 Key Specs
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.5 |
| Barrel Length (mm) | 38.1 |
| Tongue Type | Standard Tongue Width |
| Tongue Width (In.) | 0.96 |
| Tongue Width (mm) | 24.4 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.13 |
| Tongue Thickness (mm) | 3.3 |
| Overall Length (In.) | 2.64 |
| Overall Length (mm) | 67.1 |
| Color Code | Black |
| Panduit Die Index Number | P45 |
| Burndy Die Index Number | 13 |
| Wire Strip Length (In.) | 15,625 |
| Wire Strip Length (mm) | 40 |
Panduit LCBX2/0-14-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498343694 Data Sheets
| Part Drawings | Part Drawing - PDF - LCBX2_0-14-X | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
| Installation Documents | Copper Compression Connector Installation | Download and View |
Panduit LCBX2/0-14-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498343694 Environmental Information
| Panduit's RoHS Statement | Download and View |
