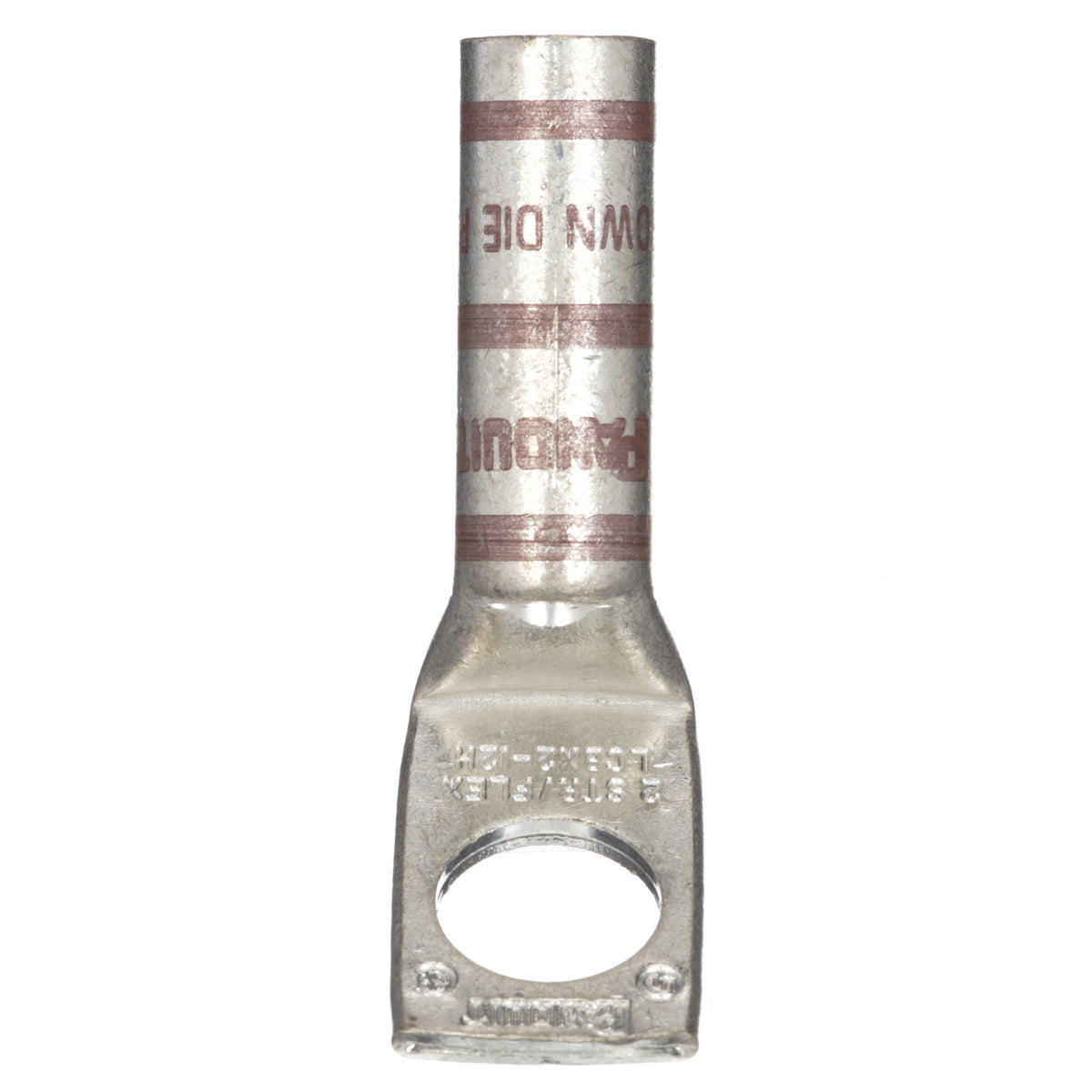

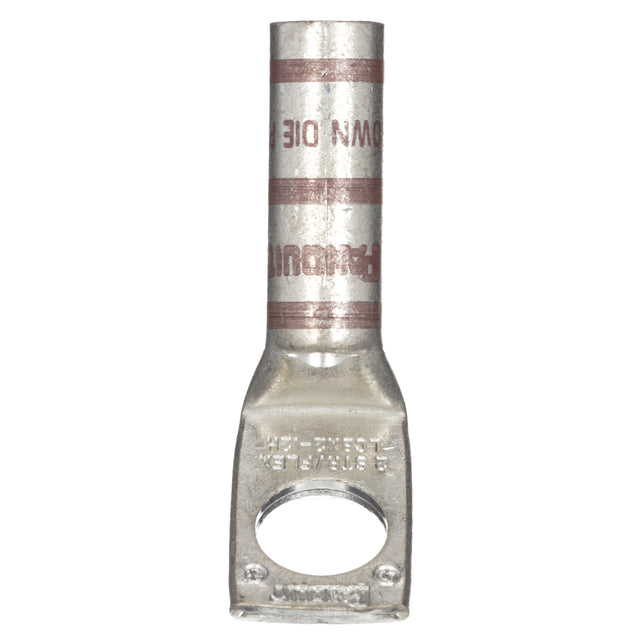

Panduit Pan-Lug Lug Compression Connector, 1-Hole, Series: LCBX, 2 AWG Conductor, Die Code: P33, 35 kV, 1/2 in Stud, 45 deg Tongue, 0.75 in W x 0.09 in THK Tongue, 4.76 in Overall Length, Long Barrel, 1.36 in L Barrel, 90 deg C, 1-7/16 in Mounting Hole, Tin Plated Copper, Brown
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Color coded barrel
Panduit LCBX2-12H-E | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498344310 Key Specs
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.767 |
| Stud Hole Size (mm) | 12.7 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.36 |
| Barrel Length (mm) | 34.5 |
| Tongue Type | Standard Tongue Width |
| Tongue Width (In.) | 0.75 |
| Tongue Width (mm) | 19.1 |
| Tongue Angle | 45° |
| Tongue Thickness (In.) | 0.09 |
| Tongue Thickness (mm) | 2.3 |
| Overall Length (In.) | 2.26 |
| Overall Length (mm) | 57.4 |
| Color Code | Brown |
| Panduit Die Index Number | P33 |
| Burndy Die Index Number | 10 |
| Wire Strip Length (In.) | 14,375 |
| Wire Strip Length (mm) | 37 |
Panduit LCBX2-12H-E | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498344310 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCBX8-10H-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCBX2-12H-E | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCBX2-12H-E | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498344310 Environmental Information
| Panduit's RoHS Statement | Download and View |
