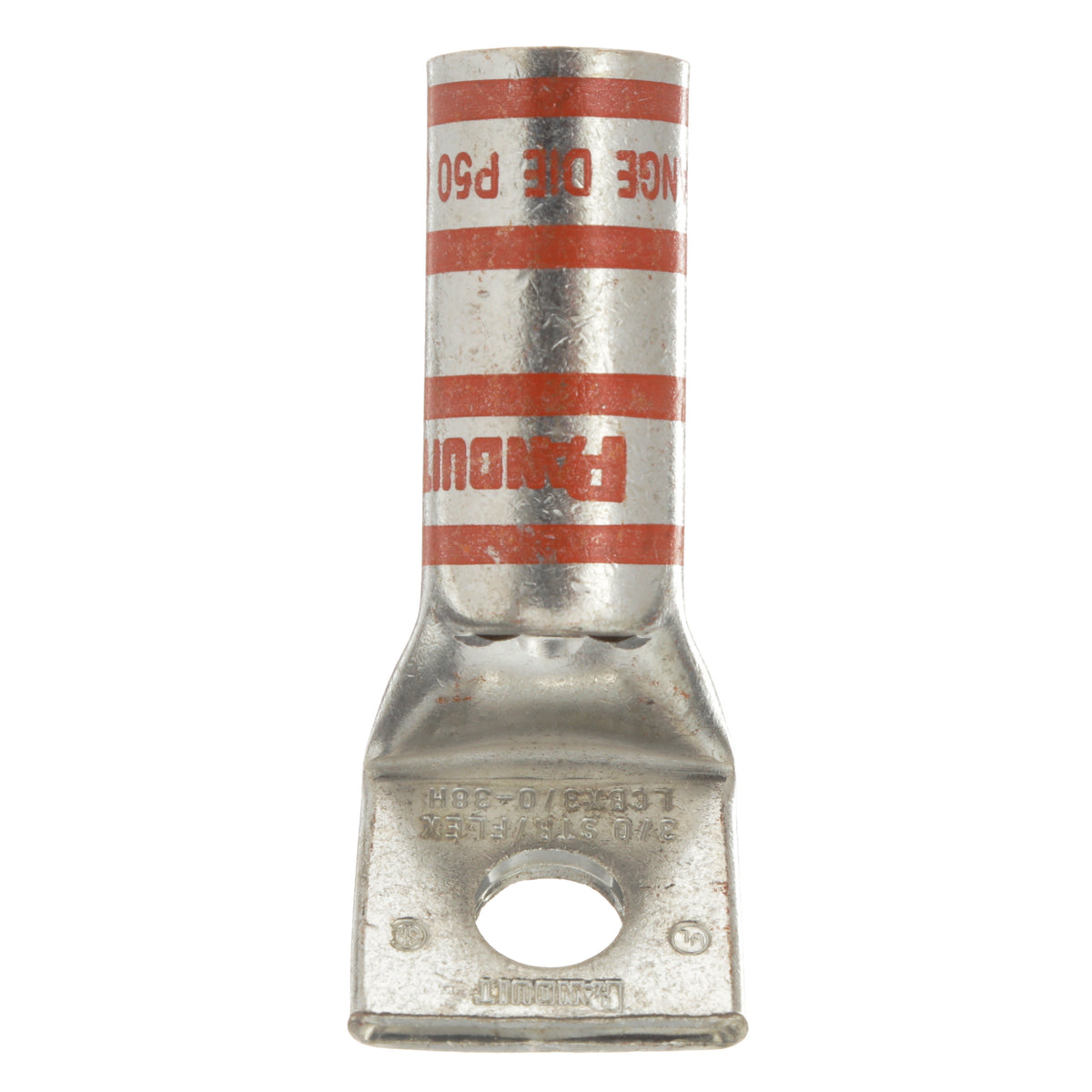

Panduit Pan-Lug Lug Compression Connector, 1-Hole, Series: LCBX, 3/0 AWG Conductor, Die Code: P50, 35 kV, 3/8 in Stud, 45 deg Tongue, 1.06 in W x 0.14 in THK Tongue, 1.91 in Overall Length, Long Barrel, 1.56 in L Barrel, 90 deg C, 1-5/8 in Mounting Hole, Tin Plated Copper, Orange
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Color coded barrel
Panduit LCBX3/0-38H-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498343715 Key Specs
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.95 |
| Stud Hole Size (mm) | 9.5 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.56 |
| Barrel Length (mm) | 39.6 |
| Tongue Type | Standard Tongue Width |
| Tongue Width (In.) | 1.06 |
| Tongue Width (mm) | 26.9 |
| Tongue Angle | 45° |
| Tongue Thickness (In.) | 0.14 |
| Tongue Thickness (mm) | 3.6 |
| Overall Length (In.) | 2.31 |
| Overall Length (mm) | 58.7 |
| Color Code | Orange |
| Panduit Die Index Number | P50 |
| Burndy Die Index Number | 14 |
| Wire Strip Length (In.) | 1,625 |
| Wire Strip Length (mm) | 41 |
Panduit LCBX3/0-38H-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498343715 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCBX8-10H-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCBX3_0-38H-X | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCBX3/0-38H-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498343715 Environmental Information
| Panduit's RoHS Statement | Download and View |
