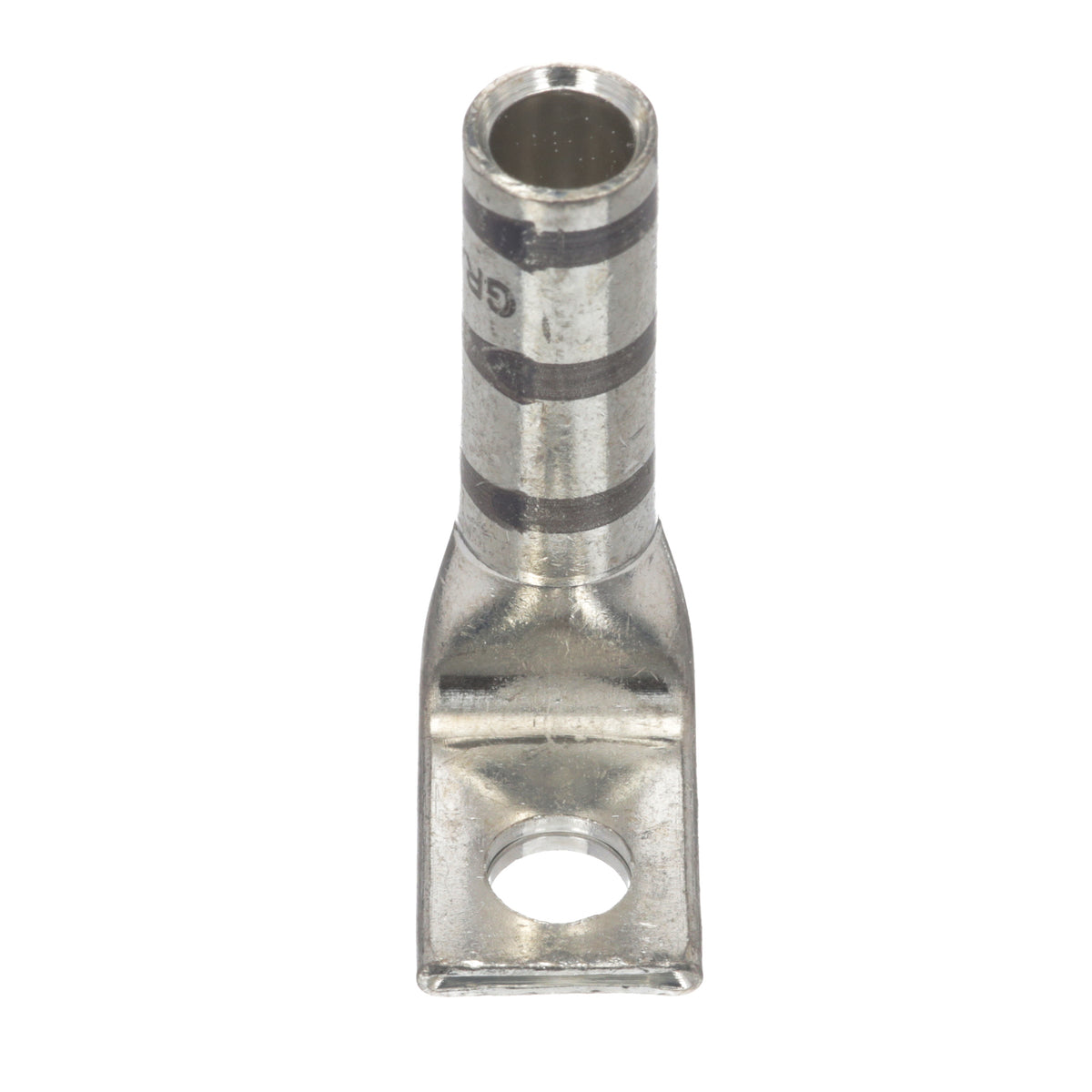

Panduit Pan-Lug Lug Compression Connector, 1-Hole, Series: LCBX, 4/5 to 3 AWG Conductor, Die Code: P29, 35 kV, 1/4 in Stud, 90 deg Tongue, 0.55 in W x 0.09 in THK Tongue, 2.26 in Overall Length, Long Barrel, 1.05 in L Barrel, 90 deg C, 1-1/8 in Mounting Hole, Tin Plated Copper, Gray
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Color coded barrel
Panduit LCBX4-14F-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498342884 Key Specs
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.05 |
| Barrel Length (mm) | 26.7 |
| Tongue Type | Standard Tongue Width |
| Tongue Width (In.) | 0.55 |
| Tongue Width (mm) | 14 |
| Tongue Angle | 90° |
| Tongue Thickness (In.) | 0.09 |
| Tongue Thickness (mm) | 2.3 |
| Overall Length (In.) | 1.12 |
| Overall Length (mm) | 28.5 |
| Color Code | Gray |
| Panduit Die Index Number | P29 |
| Burndy Die Index Number | 8 |
| Wire Strip Length (In.) | 1,125 |
| Wire Strip Length (mm) | 29 |
Panduit LCBX4-14F-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498342884 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCBX8-10F-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCBX4-14F-L | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCBX4-14F-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498342884 Environmental Information
| Panduit's RoHS Statement | Download and View |
