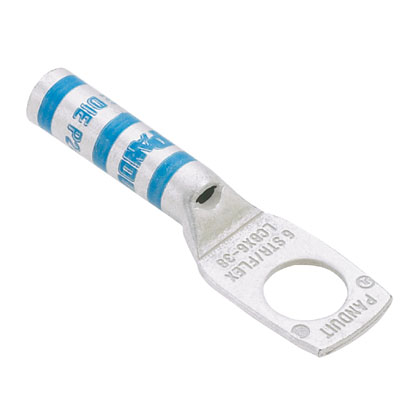

Panduit Compression Lug, 1-Hole, Series: LCBX, Extra-Flexible/Flexible/Stranded Copper Conductor, 500 kcmil, 535.3 kcmil Conductor, Die Code: P99, 35 kV, 1/2 in Stud, Standard/Straight Tongue, 1.89 in W x 0.26 in THK Tongue, 5.03 in Overall Length, Long/Standard Barrel, 1.03 in ID x 1.30 in OD x 2.88 in L Barrel, Specifications: 2.9375 in L Wire Strip, Tin Plated, 90 deg C, 29-3/8 in Mounting Hole, Copper, Pink
Features + Benefits
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- For use with flexible, extra-flexible and code stranded copper conductors
Panduit LCBX500-12-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498343775 Key Specs
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.767 |
| Stud Hole Size (mm) | 12.7 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Barrel Length (In.) | 2.88 |
| Barrel Length (mm) | 73.2 |
| Tongue Type | Standard Tongue Width |
| Tongue Width (In.) | 1.89 |
| Tongue Width (mm) | 48 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.26 |
| Tongue Thickness (mm) | 6.6 |
| Overall Length (In.) | 5.03 |
| Overall Length (mm) | 127.8 |
| Color Code | Pink |
| Panduit Die Index Number | P99 |
| Burndy Die Index Number | L99 |
| Wire Strip Length (In.) | 29,375 |
| Wire Strip Length (mm) | 75 |
Panduit LCBX500-12-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498343775 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCBX8-10-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCBX500-12-6 | Download and View |
