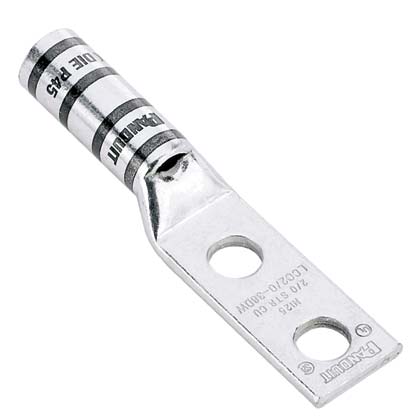

Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCC-W, Copper Conductor, 1 AWG Conductor, Die Code: P37, 35 kV, 1/4 in Stud, Straight Tongue, 0.7 in W x 0.11 in THK Tongue, 2.89 in Overall Length, Long With Inspection Window Barrel, 0.36 in ID x 0.47 in OD x 1.36 in L Barrel, 1-7/16 in L Wire Strip, 5/8 in Stud Hole Spacing, 90 deg C, 1-7/16 in Mounting Hole, Tin Plated Copper, Green
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Inspection window to visually assure full conductor insertion
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Tin-plated to inhibit corrosion
- For use with stranded copper conductors
Panduit LCC1-14AW-E | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498379800 Key Specs
| Copper Conductor Size (AWG) | #1 |
| Copper Conductor Size (kcmil) | 84 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.36 |
| Barrel Length (mm) | 34.5 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.7 |
| Tongue Width (mm) | 17.8 |
| Tongue Thickness (In.) | 0.11 |
| Tongue Thickness (mm) | 2.8 |
| Overall Length (In.) | 2.89 |
| Overall Length (mm) | 73.4 |
| Color Code | Green |
| Panduit Die Index Number | P37 |
Panduit LCC1-14AW-E | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498379800 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCC10-14JAW-L Product Page 1 | Download and View |
| Part Drawings | Part Drawing - PDF - LCC1-14AW-E | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCC1-14AW-E | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498379800 Environmental Information
| Panduit's RoHS Statement | Download and View |
