Panduit LCC10-14JAW-L | Pan-Lug Copper Compression Connectors - Lugs
Description
Description

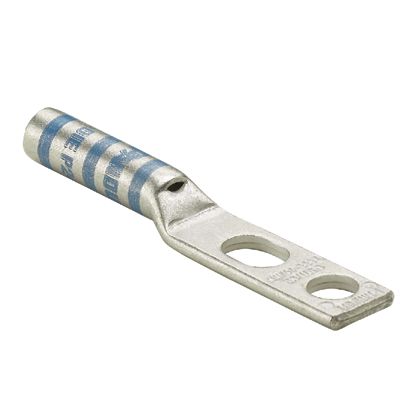

Two holes for added stability and a straight tongue for easy installation in electrical applications, our compression lug ensure reliable and secure electrical connections.
Two-hole, long barrel lug with window, #10 AWG wire, 1/4 stud hole, .50 " .63 hole spacing.
Panduit Pan-Lug Compression Connector Lug, 2-Hole, Series: LCC-W, Solid/Stranded Copper Conductor, 12 to 10 AWG, 14 to 10 AWG Conductor, 35 kVAC, 42.826 in Stud, Straight Tongue, 0.42 in W x 0.05 in THK Tongue, 1.93 in Overall Length, Long With Inspection Window Barrel, 0.13 in ID x 0.22 in OD x 0.53 in L Barrel, 9/16 in L Wire Strip, 1/2 to 5/8 Stud Hole Spacing, Tin Plated Finish, 90 deg C, 42614 in Mounting Hole, Copper
Panduit - LCC10-14JAW-L - Features
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- 14 to 10 AWG stranded, 12 to 10 AWG solid
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- For use with stranded copper conductors
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Inspection window to visually assure full conductor insertion
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- UL Listed and CSA Certified for wide wire range-taking capability when crimped with PANDUIT(TM) Uni-Die(TM) Dieless Crimping Tools
- Tested by Telcordia - meets NEBS Level 3
- Meets J-STD-607-A and TIA-942 requirements for network systems grounding applications
- Available with NEMA hole sizes and spacing
Specifications
Specifications
Panduit - LCC10-14JAW-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCC10-14JAW-L |
| Barrel | Long |
| Gauge | 10 Awg |
| Holes | 2 Hole |
| Inspection Hole | No |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 2 |
| Barrel Type | Long |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Copper Code Conductor Size (AWG) | 10 |
| Barrel Length (In.) | 0.53 |
| Barrel Length (mm) | 13.5 |
| Tongue Width (In.) | 0.42 |
| Tongue Width (mm) | 10.7 |
| Tongue Thickness (In.) | 0.05 |
| Tongue Thickness (mm) | 1.3 |
| Overall Length (In.) | 1.93 |
| UPC | 07498364834 |
Panduit - LCC10-14JAW-L - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
