Brand: Panduit
|
SKU:
306858

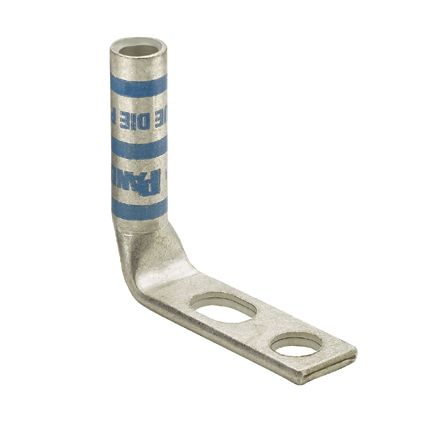

Panduit LCC10-14JAWF-L | Copper Compression Lug, 2 Hole, #10 AWG, 1/4"; (6.4mm) Stud, Slotted Tongue, 90 Degrees Bent
Regular price
$15.57
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCC10-14JAWF-L | Copper Compression Lug, 2 Hole, #10 AWG, 1...
Regular price
$15.57
Unit price
Description
Description
Panduit LCC10-14JAWF-L | Pan-Lug LCC10-14JAWF-L Copper Compression Connectors - Lugs
Two-hole, long barrel lug with window, #10 AWG wire, 1/4 stud hole, .50 — .63 hole spacing, 90° angle tongue.
Panduit - LCC10-14JAWF-L - Features
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Inspection window to visually assure full conductor insertion
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- UL Listed and CSA Certified for wide wire range-taking capability when crimped with PANDUIT(TM) Uni-Die(TM) Dieless Crimping Tools
- Tested by Telcordia - meets NEBS Level 3
- Meets J-STD-607-A and TIA-942 requirements for network systems grounding applications
- Available with NEMA hole sizes and spacing
Specifications
Specifications
Panduit - LCC10-14JAWF-L - Product Categories
- Wire Termination
- Mechanical & Compression Lugs & Splices
Panduit - LCC10-14JAWF-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCC10-14JAWF-L |
| Item Description | Pan-Lug LCC10-14JAWF-L Copper Compression Connectors - Lugs |
| Product Type | Copper Compression Connectors - Lugs |
| Lug Type | 2 Stud Hole Lug |
| Base Material | Copper |
| Copper Code Conductor Size (AWG) | 10 |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.53 |
| Barrel Length (mm) | 13.5 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.42 |
| Tongue Width (mm) | 10.7 |
| Tongue Angle | 90° |
| Tongue Thickness (In.) | 0.05 |
| Tongue Thickness (mm) | 1.3 |
| Overall Length (In.) | 1.56 |
| Overall Length (mm) | 39.624 |
| Finish/Coating | Tin-Plated |
| Standards Met | UL listed to 486A-486B File #E52164 and CSA certified C22.2 No. 65-13 |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Wire Strip Length (In.) | 9/16 |
| Wire Strip Length (mm) | 14.3 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3. |
Panduit - LCC10-14JAWF-L - Package Information
| UPC | 07498363273 |
|---|---|
| Standard Pkg. Qty. | 50 |
| Standard Package Volume (cf) | 0.0105 |
| Standard Ctn. Qty. | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - LCC10-14JAWF-L - Videos
| Video 1 | Click to View |
|---|
