Brand: Panduit
|
SKU:
LCC2/0-38D-X

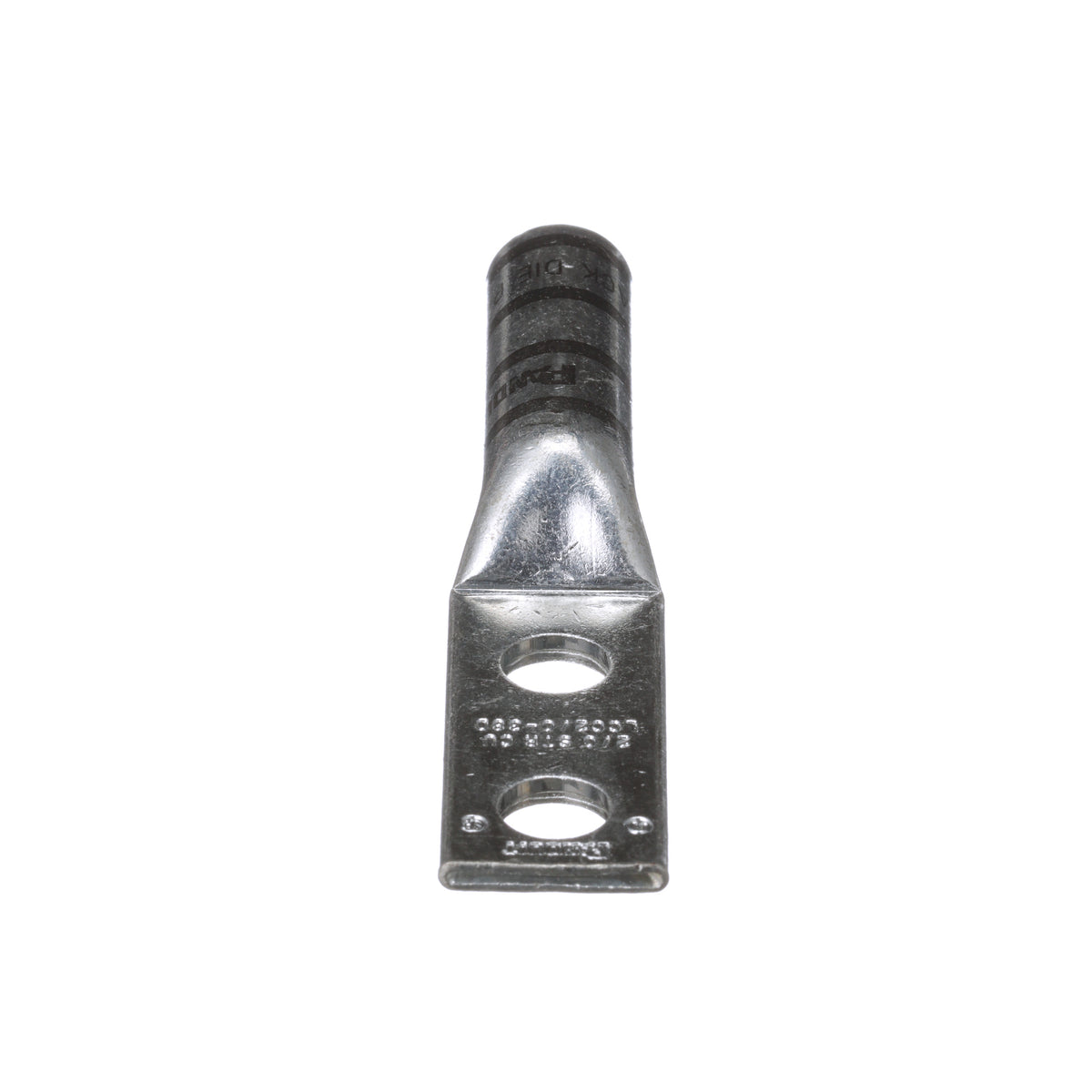

Panduit LCC2/0-38D-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338277
Regular price
$13.05
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCC2/0-38D-X | Tin-Plated Copper Compression Connectors - L...
Regular price
$13.05
Unit price
Description
Description
Panduit Compression Lug, 2-Hole, Series: LCC, Stranded Copper Conductor, 2/0 AWG Conductor, Die Code: P45, 35 kV, 3/8 in Stud, Standard/Straight Tongue, 0.85 in W x 0.13 in THK Tongue, 3.82 in Overall Length, Long Barrel, 0.45 in ID x 0.58 in OD x 1.5 in L Barrel, Specifications: 1 in Stud Hole Spacing, 1-9/16 in L Wire Strip, Tin Plated, 90 deg C, 1.56 in Mounting Hole, Copper, Black
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin plated to inhibit corrosion
- For use with stranded copper conductors
Panduit LCC2/0-38D-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338277 Key Specs
| Copper Conductor Size (AWG) | 2/0 |
| Copper Conductor Size (kcmil) | 133.1 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.95 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Barrel Type | Long Barrel Length without Inspection Window |
| Barrel Length (In.) | 1.5 |
| Barrel Length (mm) | 38.1 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.85 |
| Tongue Width (mm) | 21.6 |
| Tongue Thickness (In.) | 0.13 |
| Tongue Thickness (mm) | 3.3 |
| Overall Length (In.) | 3.82 |
| Overall Length (mm) | 97 |
| Color Code | Black |
| Panduit Die Index Number | P45 |
Panduit LCC2/0-38D-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338277 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCC8-10A-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCC2_0-38D-X | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCC2/0-38D-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338277 Environmental Information
| Panduit's RoHS Statement | Download and View |
