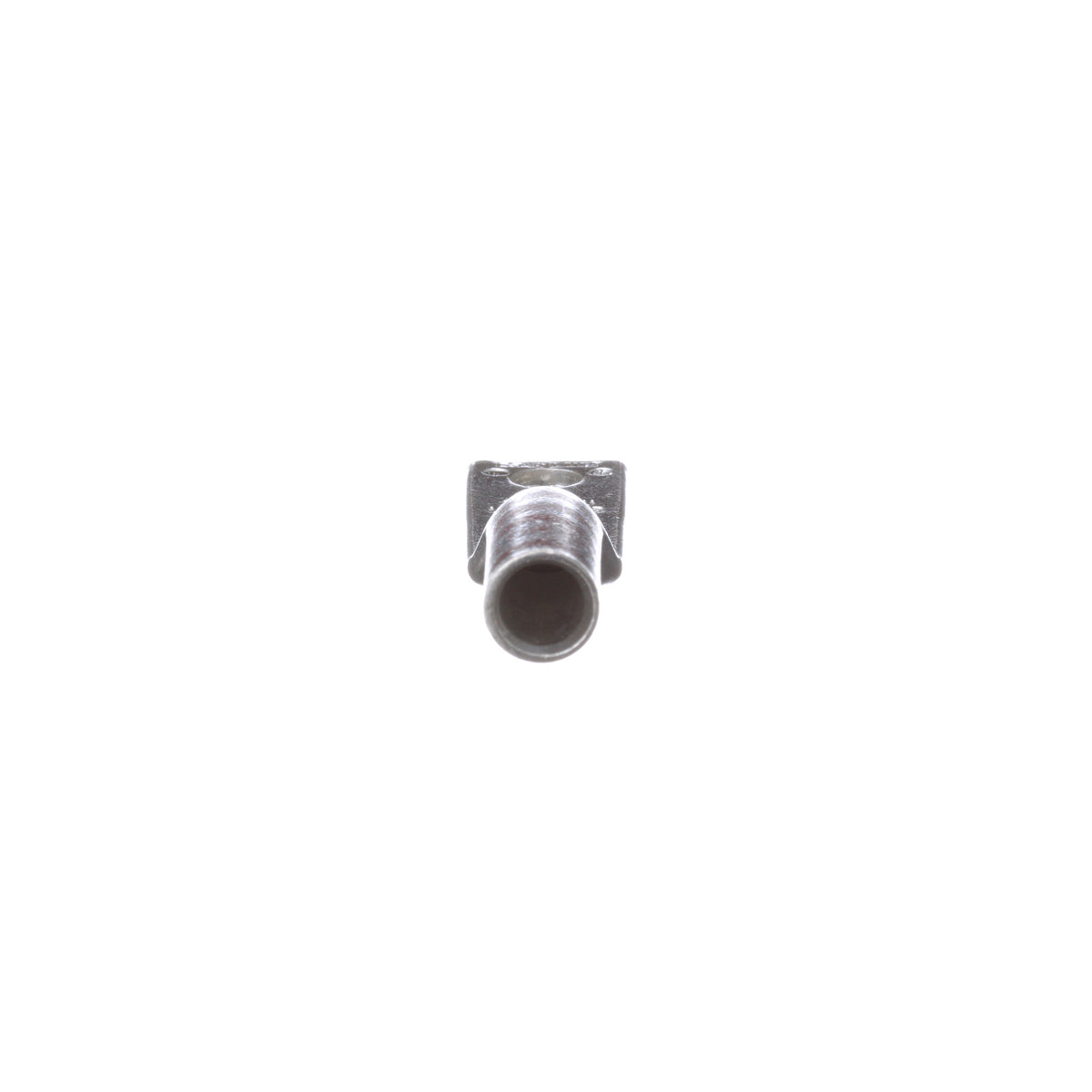

Panduit LCC2-14B-Q | Pan-Lug™ Copper 2 Hole Straight Tongue Compression Lug
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCC2-14B-Q | Pan-Lug™ Copper 2 Hole Straight Tongue Compres...
Description
Description
Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCC, Copper Conductor, 2 AWG Conductor, Die Code: P33, 35 kV, 1/4 in Stud, Straight Tongue, 0.6 in W x 0.1 in THK Tongue, 2.89 in Overall Length, Long Without Inspection Window Barrel, 1.16 in L Barrel, 1-1/4 in L Wire Strip, 3/4 in Stud Hole Spacing, 90 deg C, 1-1/4 in Mounting Hole, Tin Plated Copper, Brown
Two holes for added stability and a straight tongue for easy installation in electrical applications, our compression lug ensure reliable and secure electrical connections.
The LCC2-14B-Q Tin-Plated Copper Compression Lug Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provi des premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
Panduit - LCC2-14B-Q - Features
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin-plated to inhibit corrosion
- For use with stranded copper conductors
Specifications
Specifications
Panduit - LCC2-14B-Q - Specifications
| Holes | 2 Hole |
|---|---|
| Inspection Hole | No |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Technical Information | C22.2 No. 65-13, 486A-486B File #E52164 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 2 |
| Barrel Type | Long |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | No |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.75 |
| Stud Hole Spacing (mm) | 19.1 |
| Copper Code Conductor Size (AWG) | 2 |
| Barrel Length (In.) | 1.16 |
| Barrel Length (mm) | 29.5 |
| Tongue Width (In.) | 0.6 |
| Tongue Width (mm) | 15.2 |
| Tongue Thickness (In.) | 0.1 |
| Tongue Thickness (mm) | 2.5 |
| Overall Length (In.) | 2.89 |
| UPC | 07498338247 |
Panduit - LCC2-14B-Q - Package Information
| UPC | 07498338247 |
|---|---|
| Standard Packaging Quantity | 25 |
| Standard Packaging Volume (cf) | 0.0312 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
