Brand: Panduit
|
SKU:
LCC2-38-Q

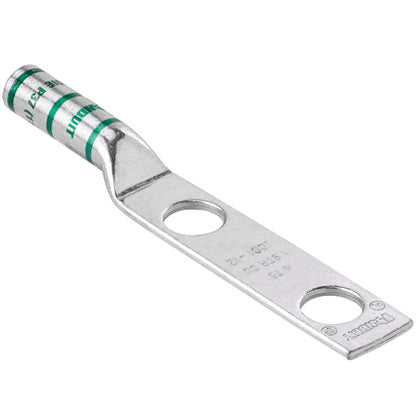

Panduit LCC2-38-Q | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338248
Regular price
$10.81
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCC2-38-Q | Tin-Plated Copper Compression Connectors - Lugs...
Regular price
$10.81
Unit price
Description
Description
Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCC, Copper Conductor, 2 AWG Conductor, Die Code: P33, 35 kV, 3/8 in Stud, Straight Tongue, 0.66 in W x 0.1 in THK Tongue, 4.09 in Overall Length, Long Without Inspection Window Barrel, 0.31 in ID x 0.42 in OD x 1.16 in L Barrel, 1-1/4 in L Wire Strip, 1-3/4 in Stud Hole Spacing, 90 deg C, 1-1/4 in Mounting Hole, Tin Plated Copper, Brown
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin-plated to inhibit corrosion
- For use with stranded copper conductors
Panduit LCC2-38-Q | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338248 Key Specs
| Copper Conductor Size (AWG) | #2 |
| Copper Conductor Size (kcmil) | 66.36 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.95 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Barrel Type | Long Barrel Length without Inspection Window |
| Barrel Length (In.) | 1.16 |
| Barrel Length (mm) | 29.5 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.66 |
| Tongue Width (mm) | 16.8 |
| Tongue Thickness (In.) | 0.1 |
| Tongue Thickness (mm) | 2.5 |
| Overall Length (In.) | 4.09 |
| Overall Length (mm) | 103.9 |
| Color Code | Brown |
| Panduit Die Index Number | P33 |
Panduit LCC2-38-Q | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338248 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCC8-10A-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCC2-38-Q | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCC2-38-Q | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338248 Environmental Information
| Panduit's RoHS Statement | Download and View |
