Brand: Panduit
|
SKU:
894418

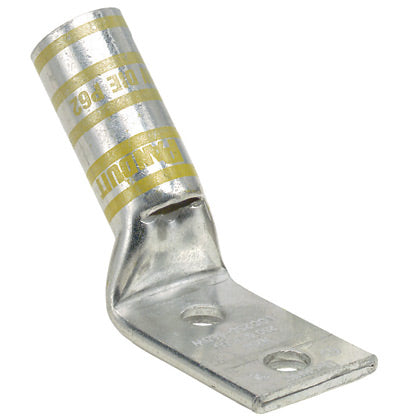

Panduit LCC2-38DWH-Q | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498380778
Regular price
$12.43
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCC2-38DWH-Q | Tin-Plated Copper Compression Connectors - L...
Regular price
$12.43
Unit price
Description
Description
Panduit Pan-Lug Lug Compression Connector, 2-Hole, Series: LCC, 2 AWG Conductor, Die Code: P33, 35 kV, 3/8 in Stud, 45 deg Tongue, 0.66 in W x 0.1 in THK Tongue, 2.88 in Overall Length, Long Barrel, 1.16 in L Barrel, 90 deg C, 1-1/4 in Mounting Hole, Tin Plated Copper, Brown
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin plated to inhibit corrosion
- Without inspection window lug
Panduit LCC2-38DWH-Q Key Specs
| Copper Conductor Size (AWG) | #2 |
| Copper Conductor Size (kcmil) | 66.36 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.95 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.16 |
| Barrel Length (mm) | 29.5 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.66 |
| Tongue Width (mm) | 16.8 |
| Tongue Thickness (In.) | 0.1 |
| Tongue Thickness (mm) | 2.5 |
| Overall Length (In.) | 2.88 |
| Overall Length (mm) | 73.2 |
| Color Code | Brown |
| Panduit Die Index Number | P33 |
Panduit LCC2-38DWH-Q Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PN18-6FF-C Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - A4157405 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
