Panduit LCC2-56BW-Q | Tin-Plated Copper Compression Connectors - Lu...
Regular price
$9.74
Unit price
Description
Description

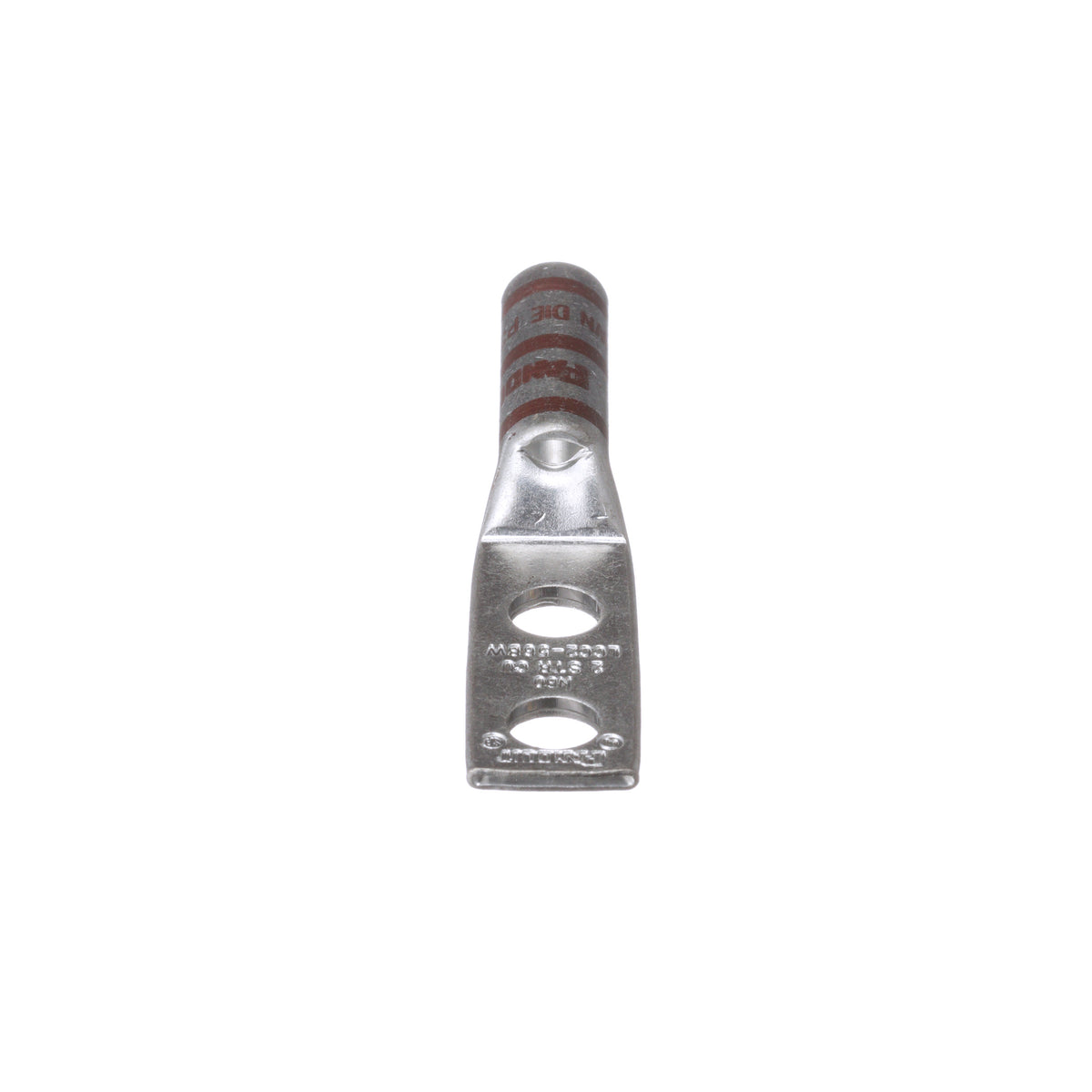

Panduit Pan-Lug Lug Compression Connector, 2-Hole, Series: LCC, 2 AWG Conductor, Die Code: P33, 35 kV, 5/16 in Stud, Straight Tongue, 0.66 in W x 0.1 in THK Tongue, 2.92 in Overall Length, Long Barrel, 1.16 in L Barrel, 90 deg C, 1-1/4 in Mounting Hole, Tin Plated Copper, Brown
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin plated to inhibit corrosion
- Without inspection window lug
Panduit LCC2-56BW-Q | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498379796 Key Specs
| Copper Conductor Size (AWG) | #2 |
| Copper Conductor Size (kcmil) | 66.36 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.491 |
| Stud Hole Size (mm) | 7.9 |
| Stud Hole Spacing (In.) | 0.75 |
| Stud Hole Spacing (mm) | 19.1 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.16 |
| Barrel Length (mm) | 29.5 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.66 |
| Tongue Width (mm) | 16.8 |
| Tongue Thickness (In.) | 0.1 |
| Tongue Thickness (mm) | 2.5 |
| Overall Length (In.) | 2.92 |
| Overall Length (mm) | 74.2 |
| Color Code | Brown |
| Panduit Die Index Number | P33 |
Panduit LCC2-56BW-Q | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498379796 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCC10-14JAW-L Product Page 1 | Download and View |
| Part Drawings | Part Drawing - PDF - LCC2-56BW-Q | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCC2-56BW-Q | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498379796 Environmental Information
| Panduit's RoHS Statement | Download and View |
