Panduit LCC250-12-X | Pan-Lug Comp. Lug, 250, Tin Plt Copper, Strt,...
Description
Description

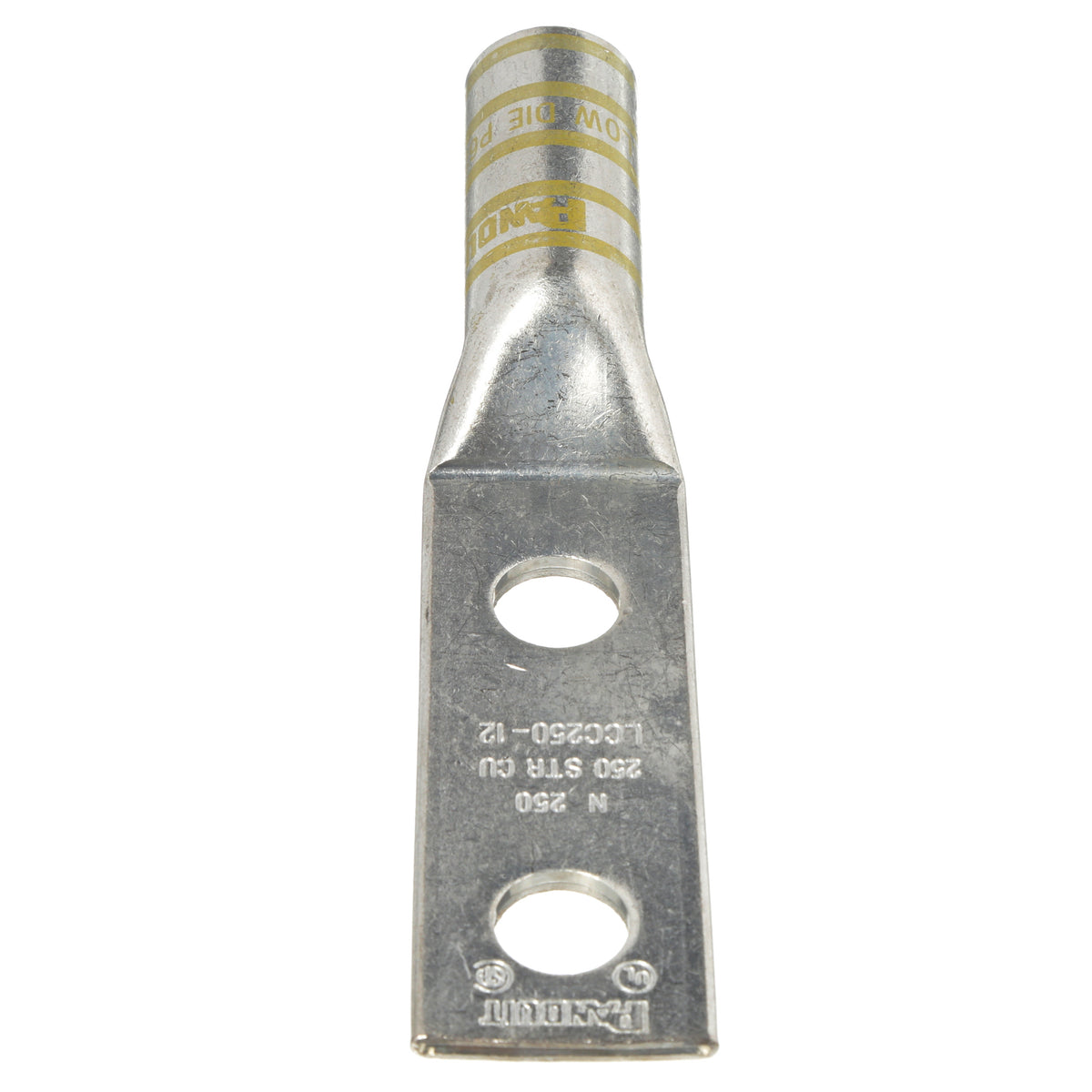

Two holes for added stability and a straight tongue for easy installation in electrical applications, our compression lug ensure reliable and secure electrical connections.
The LCC250-12-X Tin-Plated Copper Compression Lug Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and prov ides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
Panduit Compression Lug, 2-Hole, Series: LCC, Stranded Copper Conductor, 250 kcmil Conductor, Die Code: P62, 35 kV, 1/2 in Stud, Standard/Straight Tongue, 1.17 in W x 0.14 in THK Tongue, 5.23 in Overall Length, Long Barrel, 0.63 in ID x 0.77 in OD x 1.6 in L Barrel, Specifications: 1-11/16 in L Wire Strip, 1-3/4 in Stud Hole Spacing, Tin Plated, 90 deg C, 1.69 in Mounting Hole, Copper, Yellow
Panduit - LCC250-12-X - Features
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin plated to inhibit corrosion
- For use with stranded copper conductors
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- UL Listed and CSA Certified for wide wire range-taking capability when crimped with PANDUIT(TM) Uni-Die(TM) Dieless Crimping Tools
- Tested by Telcordia - meets NEBS Level 3
- American Bureau of Shipping Approved
- Available with NEMA hole sizes and spacing
Specifications
Specifications
Panduit - LCC250-12-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCC250-12-X |
| Barrel | Long |
| Bolt Hole | 1/2 Inch |
| Gauge | 250Kcmil (Aka Mcm) |
| Holes | 2 Hole |
| Inspection Hole | No |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 2 |
| Barrel Type | Long |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | No |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Copper Code Conductor Size (kcmil) | 250 |
| Barrel Length (In.) | 1.6 |
| Barrel Length (mm) | 40.6 |
| Tongue Width (In.) | 1.17 |
| Tongue Width (mm) | 29.7 |
| Tongue Thickness (In.) | 0.14 |
| Tongue Thickness (mm) | 3.6 |
| Overall Length (In.) | 5.23 |
| UPC | 07498390245 |
