Brand: Panduit
|
SKU:
PAN-LCC250-12D-X

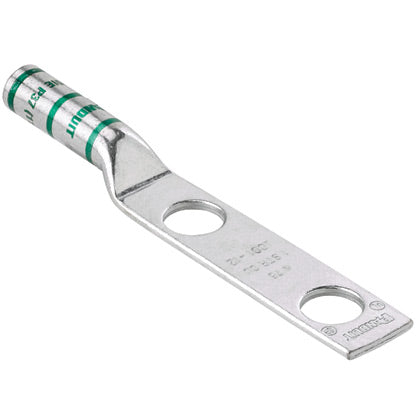

Panduit LCC250-12D-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338289
Regular price
$15.52
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCC250-12D-X | Tin-Plated Copper Compression Connectors - L...
Regular price
$15.52
Unit price
Brand: Panduit
|
SKU:
PAN-LCC250-12D-X
Regular price
$15.52
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Compression Lug, 2-Hole, Series: LCC, Stranded Copper Conductor, 250 kcmil Conductor, Die Code: P62, 35 kV, 1/2 in Stud, Standard/Straight Tongue, 1.17 in W x 0.14 in THK Tongue, 4.32 in Overall Length, Long Barrel, 1.6 in L Barrel, Specifications: 1 in Stud Hole Spacing, 1-11/16 in L Wire Strip, Tin Plated, 90 deg C, 1.69 in Mounting Hole, Copper, Yellow
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin-plated to inhibit corrosion
- For use with stranded copper conductors
Panduit LCC250-12D-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338289 Key Specs
| Copper Conductor Size (kcmil) | 250 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.767 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Barrel Type | Long Barrel Length without Inspection Window |
| Barrel Length (In.) | 1.6 |
| Barrel Length (mm) | 40.6 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.17 |
| Tongue Width (mm) | 29.7 |
| Tongue Thickness (In.) | 0.14 |
| Tongue Thickness (mm) | 3.6 |
| Overall Length (In.) | 4.32 |
| Overall Length (mm) | 109.7 |
| Color Code | Yellow |
| Panduit Die Index Number | P62 |
| Burndy Die Index Number | 16 |
Panduit LCC250-12D-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338289 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCC8-10A-L Product Page | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
| Installation Documents | Copper Compression Connector Installation Instructions | Download and View |
Panduit LCC250-12D-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338289 Environmental Information
| Panduit's RoHS Statement | Download and View |
