Brand: Panduit
|
SKU:
LCC250-12W-X

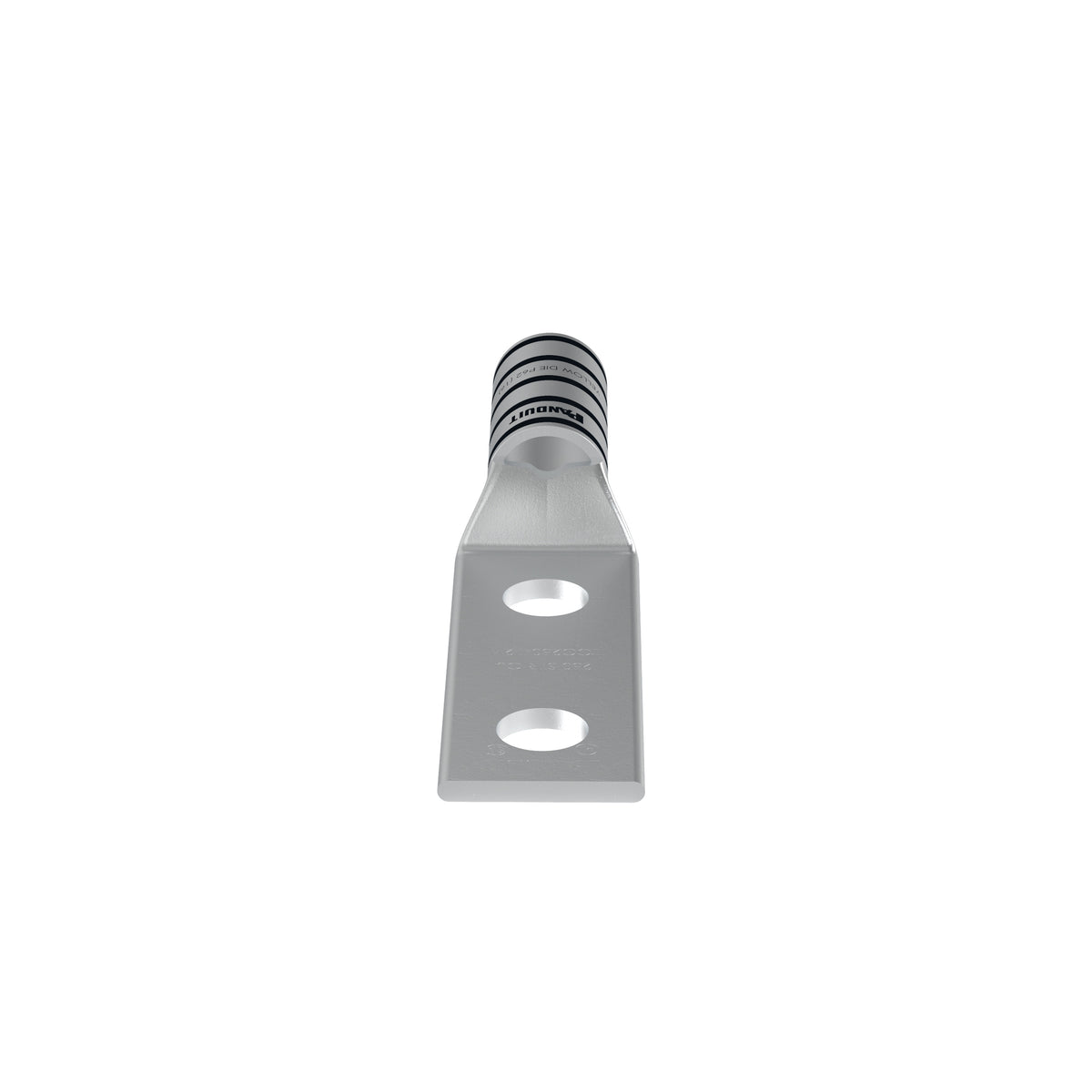

Panduit LCC250-12W-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498379836
Regular price
$18.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCC250-12W-X | Tin-Plated Copper Compression Connectors - L...
Regular price
$18.45
Unit price
Description
Description
Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCC-W, Copper Conductor, 250 kcmil Conductor, Die Code: P62, 35 kV, 1/2 in Stud, Straight Tongue, 1.17 in W x 0.14 in THK Tongue, 5.03 in Overall Length, Long With Inspection Window Barrel, 0.63 in ID x 0.77 in OD x 1.61 in L Barrel, 1-11/16 in L Wire Strip, 1-3/4 in Stud Hole Spacing, 90 deg C, 1-11/16 in Mounting Hole, Tin Plated Copper, Yellow
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Inspection window to visually assure full conductor insertion
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Tin-plated to inhibit corrosion
- For use with stranded copper conductors
Panduit LCC250-12W-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498379836 Key Specs
| Inside Diameter (In.) | 0.63 |
| Inside Diameter (mm) | 16 |
| Outer Diameter (In.) | 0.77 |
| Outer Diameter (mm) | 19.55 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Lug Type | 2 Stud Hole Lug |
| Base Material | Copper |
| Copper Code Conductor Size (kcmil) | 250 |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Barrel Type | Long Barrel with Inspection Window |
| Barrel Length (In.) | 1.61 |
| Barrel Length (mm) | 40.9 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.17 |
| Tongue Width (mm) | 29.7 |
| Tongue Angle | Straight |
Panduit LCC250-12W-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498379836 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCC10-14JAW-L Product Page 1 | Download and View |
| Catalog Cut Sheets | LCC-W | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCC250-12W-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498379836 Environmental Information
| Panduit's RoHS Statement | Download and View |
