Brand: Panduit
|
SKU:
LCC250-12WH-X
Panduit LCC250-12WH-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498380899
Regular price
$21.38
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCC250-12WH-X | Tin-Plated Copper Compression Connectors - ...
Regular price
$21.38
Unit price
Brand: Panduit
|
SKU:
LCC250-12WH-X
Regular price
$21.38
Unit price
Shipping calculated at checkout.
Description
Description

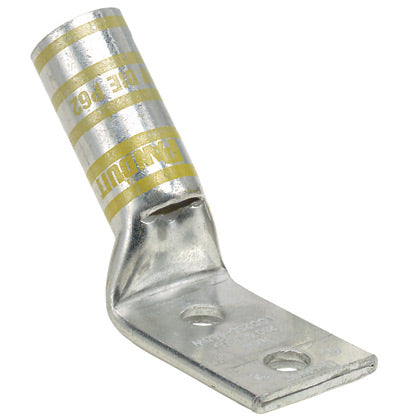

Panduit Pan-Lug Lug Compression Connector, 2-Hole, Series: LCC, 250 kcmil Conductor, Die Code: P62, 35 kV, 1/2 in Stud, 45 deg Tongue, 1.17 in W x 0.14 in THK Tongue, 4.52 in Overall Length, Long with Inspection Window Barrel, 1.61 in L Barrel, 90 deg C, 1.69 in Mounting Hole, Copper, Yellow
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin plated to inhibit corrosion
- Without inspection window lug
Panduit LCC250-12WH-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498380899 Key Specs
| Copper Conductor Size (kcmil) | 250 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.767 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.61 |
| Barrel Length (mm) | 40.9 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.17 |
| Tongue Width (mm) | 29.7 |
| Tongue Thickness (In.) | 0.14 |
| Tongue Thickness (mm) | 3.6 |
| Overall Length (In.) | 4.52 |
| Overall Length (mm) | 114.8 |
| Color Code | Yellow |
| Panduit Die Index Number | P62 |
| Burndy Die Index Number | 16 |
Panduit LCC250-12WH-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498380899 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCC10-14JAWH-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCC250-12WH-X | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCC250-12WH-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498380899 Environmental Information
| Panduit's RoHS Statement | Download and View |
